LM230WF4-TLA1 LG LCD Pane 23.0 inch LCM 1920×1080 300 1000:1 16.7M CCFL LVDS
LM230WF4-TLA1 LG LCD Pane 23.0 inch LCM 1920×1080 300 1000:1 16.7M CCFL LVDS
LM230WF4-TLA1 Detail
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) |
| Weight : | 3.00/3.15Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 509.184×286.416 mm (H×V) |
| Bezel Area : | 513.8×291.0 mm (H×V) |
| Outline Dimension : | 533.2×312 mm (H×V) |
| Outline Depth : | 17.0 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| Display Mode : | IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

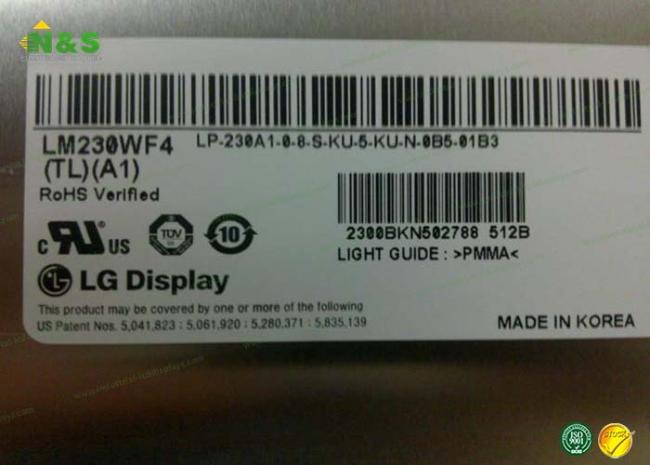

LM230WF4-TLA1 Picture
