6.5 Inch NL6448BC20-18 flat panel lcd display NEC with 132.48×99.36 mm Active Area
6.5 Inch NL6448BC20-18 flat panel lcd display NEC with 132.48×99.36 mm Active Area
NL6448BC20-18 Specification
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 205/215g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 135.9×102.8 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
- AUO LCD Screen
- Samsung LCD Display
- LG LCD Screen replacements
- Sharp LCD panels &Chimei LCD Parts.
- Innolux LCD Modules & BOE LCD Screen.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

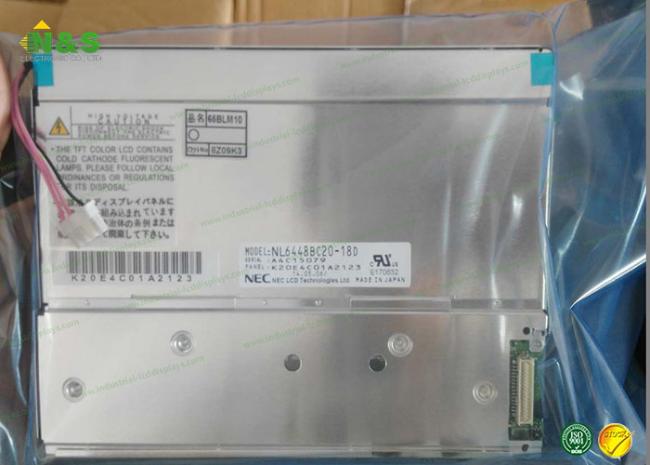

NL6448BC20-18 Picture
