H320QN01 V2 AUO LCD Panel 3.2 inch LCM 320×480 400 800:1 16.7M WLED MDDI/MIPI
H320QN01 V2 AUO LCD Panel 3.2 inch LCM 320×480 400 800:1 16.7M WLED MDDI/MIPI
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 3.2 inch |
| Dot Resolution : | 320(RGB)×480 (HVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 180 PPI |
| Aspect Ratio : | 2:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.047×0.141 mm (H×V) |
| Pixel Pitch : | 0.141×0.141 mm (H×V) |
| Weight : | 15.5g |
| Active Area : | 45.12×67.68 mm (H×V) |
| Outline Dimension : | 50.6×78.9 mm (H×V) |
| Outline Depth : | 1.85/2.18 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
| Display Mode : |
|
|
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 67% NTSC (CIE1931) | |
| Response Time : | 35 (Max.)(Tr+Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.18/1.33 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
- Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
- long-term partner:
* Products are sold to more than 20 countries.
- Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

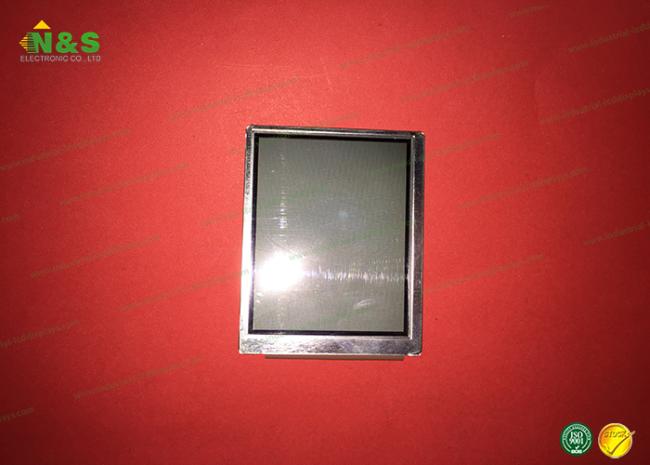

H320QN01 V2 Picture
