HT12X14-100 Industrial LCD Displays 12.1 inch Transmissive with 245.76×184.32 mm
HT12X14-100 Industrial LCD Displays 12.1 inch Transmissive with 245.76×184.32 mm
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 275g (Typ.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.9×188.0 mm (H×V) |
| Outline Dimension : | 261×199 mm (H×V) |
| Outline Depth : | 4.7±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 150 cd/m² (Typ.) | |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 10/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 45/45/20/50 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
| |
| White Variation : | 1.17/1.25 (Typ./Max.)(5 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| TF020TUVB2 | TPO | 2.0" | 176×220 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
| AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
| TF020TUYB1 | TPO | 2.0" | 176×220 |
| TF018TUYR1 | TPO | 1.8" | 128×160 |
| TF018TUYG1 | TPO | 1.8" | 128×160 |
| T026TVE001 | TPO | 2.6" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

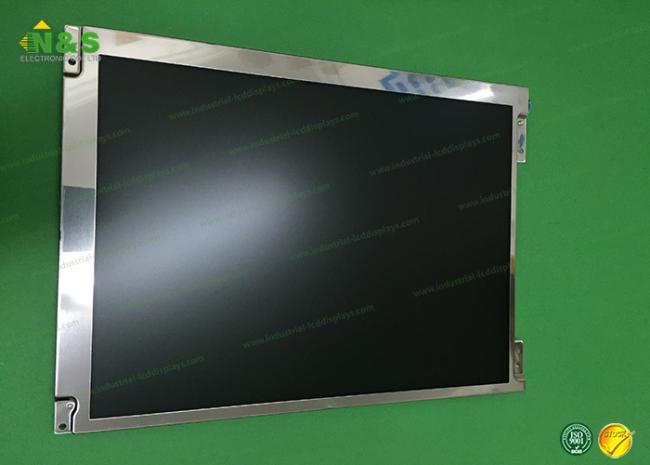

HT12X14-100 Picture
