MT190AW02 V.4 19.0 inch industrial lcd screen with 408.24×255.15 mm Active Area
Innolux Normally White MT190AW02 V.4 LCD Panel 19.0 inch with 408.24×255.15 mm Active Area
MT190AW02 V.4 Information
| Panel Brand : | INNOLUX |
| Panel Model : | MT190AW02 V.4 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278×10.82 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 11S8P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.60/1.80Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 10.82 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B116XAN05.0 CELL | AUO | 11.6" | 1366×768 |
| H495TAN01.0 | AUO | 5.0" | 720×1280 |
| H598QAN02.1 | AUO | 6.0" | 1440×2560 |
| M185XTN01.2 CELL | AUO | 18.5" | 1366×768 |
| H598QAN01.0 | AUO | 6.0" | 1440×2560 |
| T430HVN01.2 CELL | AUO | 43" | 1920×1080 |
| H495TAN01.2 | AUO | 5.0" | 720×1280 |
| T650QVN04.5 CELL | AUO | 65" | 3840×2160 |
| M320DVN01.0 CELL | AUO | 32.0" | 2560×1440 |
| M238HVN01.0 CELL | AUO | 23.8" | 1920×1080 |
| M238HVN01.2 CELL | AUO | 23.8" | 1920×1080 |
| T320XVN02.F CELL | AUO | 31.5" | 1366×768 |
| T430HVN01.6 CELL | AUO | 43" | 1920×1080 |
| B101EAN01.2 CELL | AUO | 10.1" | 1280×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

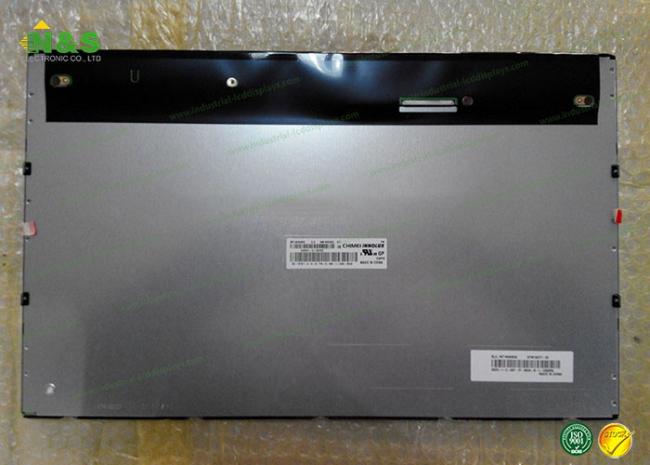

MT190AW02 V.4 Innolux LCD Panel Picture
