Normally White NL8060BC31-02 NEC LCD Panel 12.1 inch LCM 800×600 90 150:1 262K CCFL TTL
Normally White NL8060BC31-02 NEC LCD Panel 12.1 inch LCM 800×600 90 150:1 262K CCFL TTL
NL8060BC31-02 Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 490/510g (Typ./Max.) |
| Surface : | Antireflection |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 250.0×188.5 mm (H×V) |
| Outline Dimension : | 275×199 mm (H×V) |
| Outline Depth : | 7.5/8.0 (Typ./Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-R1.7) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 42% NTSC (CIE1931) |
| Response Time : | 40 (Typ.)(Tr) |
| Viewing Angle : | 50/50/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |

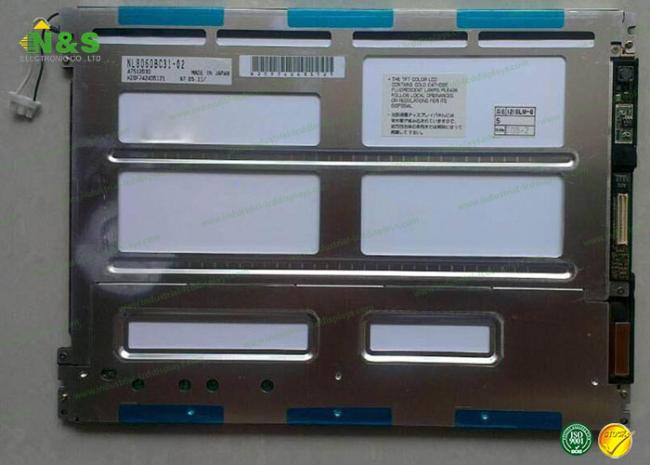

NL8060BC31-02 Picture
