NL8060BC31-36 color lcd module 12.1" LCM 800×600 1100 600:1 262K CCFL TTL
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
NEC
Product Description

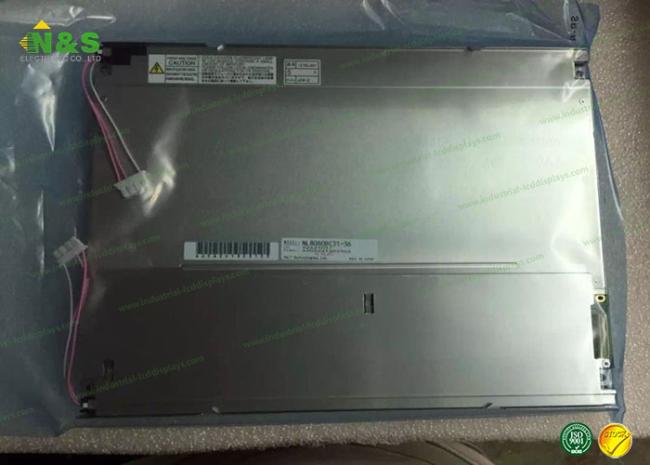

NL8060BC31-36 NEC LCD Panel 12.1" LCM 800×600 1100 600:1 262K CCFL TTL
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 900/930g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×209 mm (H×V) |
| Outline Depth : | 16.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 1100 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 8/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | Y |
