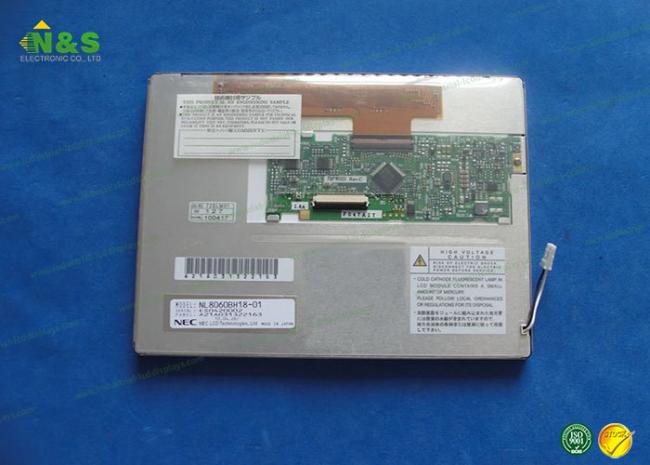

NL8060BH18-01 NEC LCD Panel 7.2" LCM 800×600 400 600:1 262K/16.7M CCFL LVDS
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
NEC
Product Description
NL8060BH18-01 NEC LCD Panel 7.2" LCM 800×600 400 600:1 262K/16.7M CCFL LVDS
| Panel Size : | 7.2 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | Horizontally Double-Density Pixel |
| Pixel Density : | 138 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0915×0.061 mm (H×V) |
| Pixel Pitch : | 0.183×0.183 mm (H×V) |
| Weight : | 260g (Typ.) |
| Active Area : | 146.4×109.8 mm (H×V) |
| Outline Dimension : | 166.6×129.3 mm (H×V) |
| Outline Depth : | 9.6 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 18 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| 3D Display : | |
| Sunlight Readable : | N |
