Antiglare LQ150X1LG98 Sharp LCD Panel 15.0 inch for Industrial Application
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 Working Days after order confirmation
Brand:
Sharp
Product Description
Antiglare LQ150X1LG98 Sharp LCD Panel 15.0 inch for Industrial Application
LQ150X1LG98 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ150X1LG98 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 326.5×253.5×10.1 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
- AUO LCD Screen
- Samsung LCD Display
- LG LCD Screen replacements
- Sharp LCD panels &Chimei LCD Parts.
- Innolux LCD Modules & BOE LCD Screen.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 995g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 9.6±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.

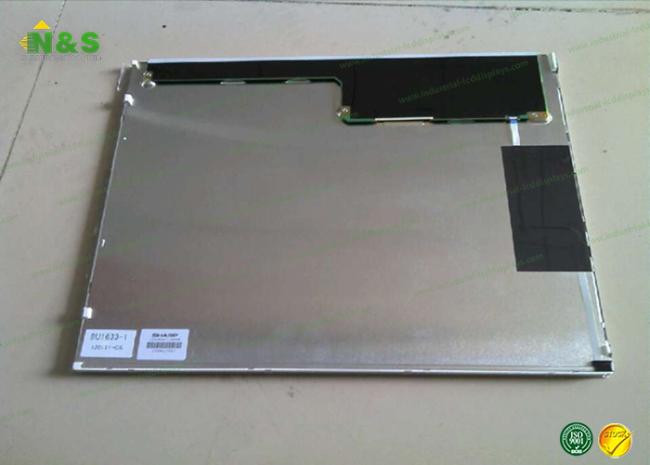

LQ150X1LG98 Picture
