Normally Black LQ190E1LW52 Sharp LCD Panel 19.0 inch LCM 1280×1024 450 1000:1 16.7M WLED LVDS
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 Working Days after order confirmation
Brand:
Sharp
Product Description
Normally Black LQ190E1LW52 Sharp LCD Panel 19.0 inch LCM 1280×1024 450 1000:1 16.7M WLED LVDS
LQ190E1LW52 Product Information
| Panel Brand : | SHARP |
| Panel Model : | LQ190E1LW52 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 404.2×330×15.7 mm |
| Surface : | Antiglare (Haze 40%), Hard coating (2H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 12 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5 strings × 2CN WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
- AUO LCD Screen
- Samsung LCD Display
- LG LCD Screen replacements
- Sharp LCD panels &Chimei LCD Parts.
- Innolux LCD Modules & BOE LCD Screen.
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.85Kgs (Max.) |
| Surface : | Antiglare (Haze 40%), Hard coating (2H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 382.20×307.00 mm (H×V) |
| Outline Dimension : | 404.2×330 mm (H×V) |
| Outline Depth : | 15.7 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

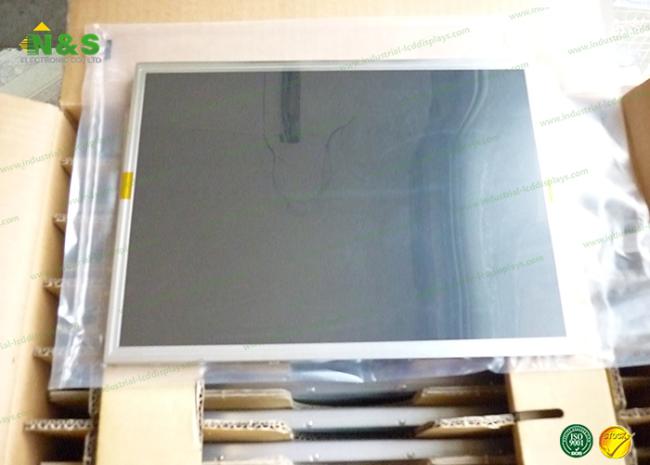

LQ190E1LW52 Picture
