Normally White NEC LCD Panel 12.1 inch LCM 1024×768 300 600:1 262K NL10276BC24-14
Normally White NL10276BC24-14 NEC LCD Panel 12.1 inch LCM 1024×768 300 600:1 262K WLED LVDS
NL10276BC24-14 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC24-14 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 260×200×7 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S5P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 285/300g (Typ.Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 260×200 mm (H×V) |
| Outline Depth : | 6.5±0.5 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |

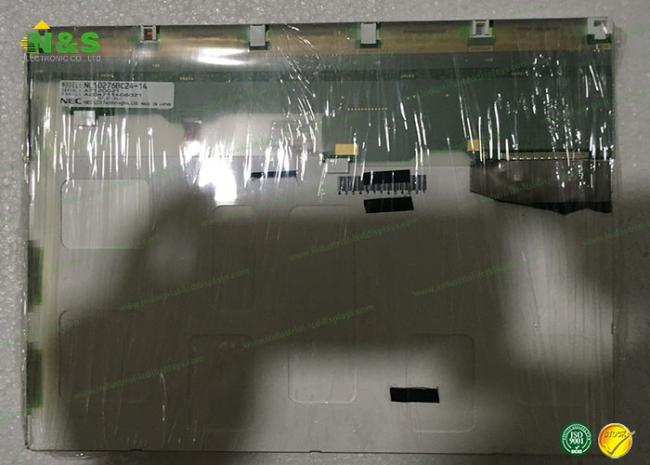

NL10276BC24-14 NEC LCD Panel Picture
