19.5 inch M195RTN01.0 AUO LCD Panel Normally White LCM 1600×900 250 1000:1 16.7M WLED LVDS
19.5 inch M195RTN01.0 AUO LCD Panel Normally White LCM 1600×900 250 1000:1 16.7M WLED LVDS
M195RTN01.0 Detail
| Panel Brand : | AUO |
| Panel Model : | M195RTN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.5 inch |
| Resolution : | 1600(RGB)×900 , HD+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 433.92×236.34 mm |
| Outline : | 452×263×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.8/1.2 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 19.5 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0904×0.2626 mm (H×V) |
| Pixel Pitch : | 0.2712×0.2626 mm (H×V) |
| Weight : | 1.43Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 433.92×236.34 mm (H×V) |
| Bezel Area : | 437.2×239.6 mm (H×V) |
| Outline Dimension : | 452×263 mm (H×V) |
| Outline Depth : | 7.6/11.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

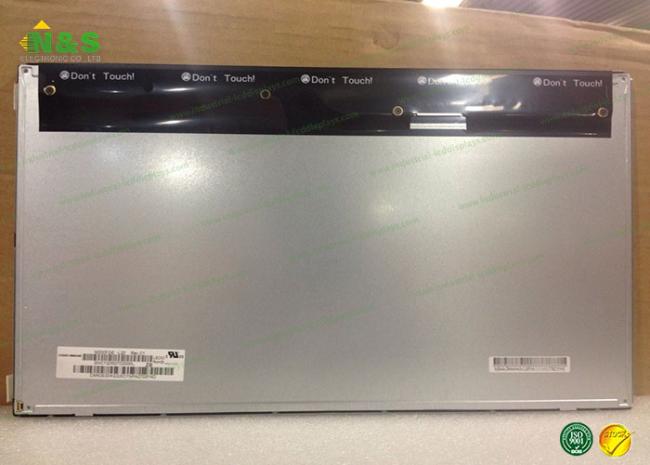

M195RTN01.0 Picture
