TD030WHEA1 TPO 3.0 inch LCD Panel Normally White LCM 320×240 300 400:1 16.7M WLED Serial RGB
TD030WHEA1 TPO 3.0 inch LCD Panel Normally White LCM 320×240 300 400:1 16.7M WLED Serial RGB
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
TD030WHEA1 Specification
| Panel Brand : | TPO |
| Panel Model : | TD030WHEA1 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.0 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 60.03×45 mm |
| Outline : | 70.2×51.7 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S1P WLED Without Driver |
| Signal Interface : | Serial RGB (8-bit) + SPI , 39 pins |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| TF020TUVB2 | TPO | 2.0" | 176×220 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
| AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
| TF020TUYB1 | TPO | 2.0" | 176×220 |
| Panel Size : | 3.0 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Delta |
| Pixel Density : | 135 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch : | 0.1875×0.1875 mm (H×V) |
| Weight : | 19.5g |
| Surface : | Hard coating (3H) |
| Active Area : | 60.03×45 mm (H×V) |
| Bezel Area : | 62.73×47.7 mm (H×V) |
| Outline Dimension : | 70.2×51.7 mm (H×V) |
| Outline Depth : | 2.58 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

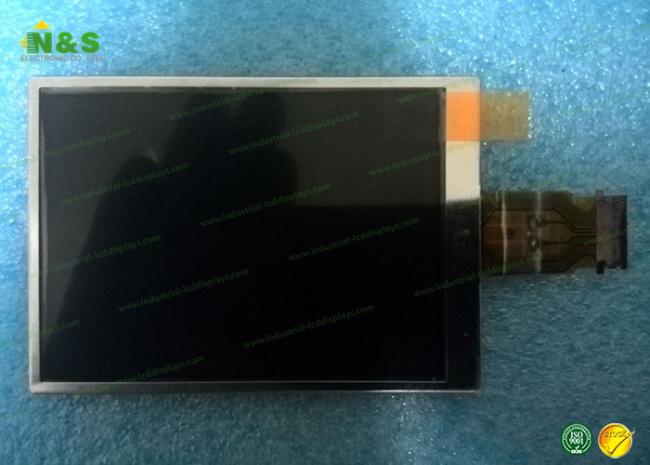

TD030WHEA1 Picture
