TM038QV-67A02A 3.8 inch Industrial LCD Displays Normally White with 76.8×57.6 mm
TM038QV-67A02A 3.8 inch Industrial LCD Displays Normally White with 76.8×57.6 mm
| Panel Size : | 3.8 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 65g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 76.8×57.6 mm (H×V) |
| Bezel Area : | 80.0×62.2 mm (H×V) |
| Outline Dimension : | 96.8×73 mm (H×V) |
| Outline Depth : | 5.1 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Reflective |
| Brightness : | 28 cd/m² (Typ.) |
| Contrast Ratio : | 7:1 (Typ. light on); 17:1 (Typ. light off) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/50/50 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.300 |
| White Variation : | 1.60 (Max.)(9 points) |
| Reflectance Ratio : | 17% (Typ.) |
| Sunlight Readable : | Y |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM-CF53-22NAZ | SANYO | 11.3" | 800×600 |
| LM-CF53-22NCK | SANYO | 11.3" | 800×600 |
| LM-CF53-22NSK | SANYO | 11.3" | 800×600 |
| LM-CF53-22NDK | SANYO | 11.3" | 800×600 |
| LM-CF53-22NTK | SANYO | 11.3" | 800×600 |
| LM-CE53-22NTK | SANYO | 9.4" | 640×480 |
| LM-CE53-22NEK | SANYO | 9.4" | 640×480 |
| LM-CD53-22NTK | SANYO | 9.4" | 640×480 |
| LM-CD53-22NEK | SANYO | 9.4" | 640×480 |

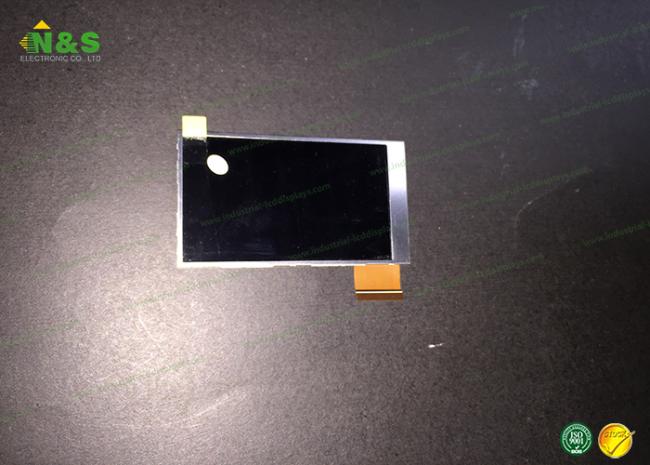

TM038QV-67A02A Picture
