TX18D35VM0AAA Hitachi LCD Screen 7.0 Inch LCD 800×480 Resolution , Long Lifespan
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 Working Days after order confirmation
Brand:
Hitachi
Product Description
TX18D35VM0AAA Hitachi LCD Panel 7.0 inch LCM 800×480 450 600:1 262K WLED TTL
TX18D35VM0AAA Specification
| Panel Brand : | HITACHI |
| Panel Model : | TX18D35VM0AAA |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | IPS Pro, Normally Black, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×104×13.3 mm |
| Surface : | |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 45 (Max.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S4P WLED Embedded (LED Driver) |
| Signal Interface : | CMOS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
Our Advantages
- We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
- 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
- Welcome small, medium & big quantity orders.
- 100% QC Inspection before Shipment.
- After-sales-service With 12 Months Warranty for our LCD panels.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 260g (Typ.) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 155.8×94.74 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 8.5/13.3 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting holes (4-M3) on pole |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

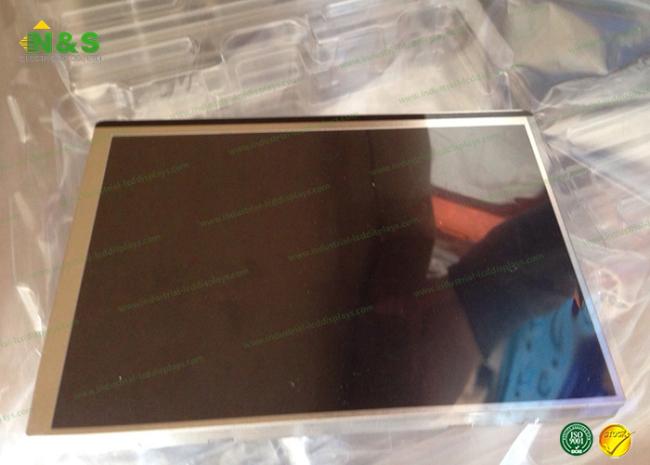

TX18D35VM0AAA Picture
