TM097TDHG01 Tianma LCD Displays 9.7 inch LCM 1024×768 220 500:1 262K/16.7M WLED TTL
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
2-3 working days after payment confirmation
Brand:
TIANMA
Product Description
TM097TDHG01 Tianma LCD Displays 9.7 inch LCM 1024×768 220 500:1 262K/16.7M WLED TTL
Products Information:
| Panel Size : | 9.7 inch | ||
| Dot Resolution : | 1024(RGB)×768 (XGA) | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 132 PPI | ||
| Aspect Ratio : | 4:3 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.064×0.192 mm (H×V) | ||
| Pixel Pitch : | 0.192×0.192 mm (H×V) | ||
|
| ||
| Surface : | Antiglare, Hard coating (3H) | ||
| Active Area : | 196.608×147.456 mm (H×V) | ||
| Bezel Area : | 200.91×152.26 mm (H×V) | ||
| Outline Dimension : | 210.21×166.3 mm (H×V) | ||
| Outline Depth : | 3.66±0.3 mm | ||
| Holes & Brackets : | Face mounting holes (10 pcs) on left, right, up, down slugs | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : | Without | ||
| |
| Display Mode : |
| |
| Brightness : | 220 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 3 o'clock | |
| White color Chromaticity : |
| |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |

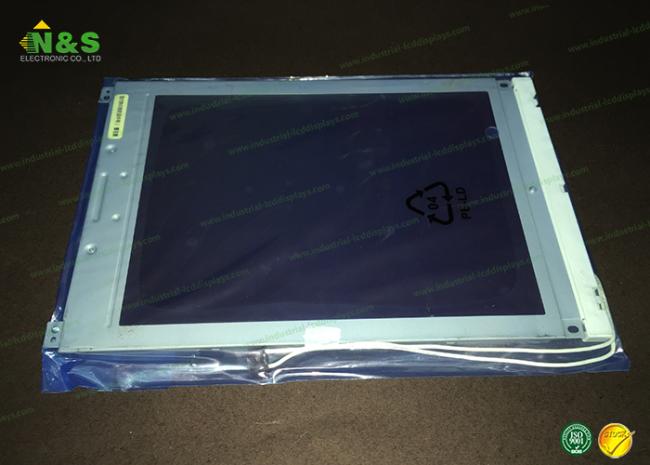

TM097TDHG01 Picture
