18.1 Inch Normally Black NEC LCD Panel / Nec Commercial Displays NL128102AC28-07
18.1 inch Normally Black NEC LCD Panel NL128102AC28-07 with 359.04×287.232 mm Active Area
NL128102AC28-07 Detail
| Panel Brand : | NEC |
| Panel Model : | NL128102AC28-07 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.1 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | A-SFT, Normally Black, Transmissive |
| Active Area : | 359.04×287.232 mm |
| Outline : | 389×317.2×31.3 mm |
| Surface : | Hard coating (2H), Antireflection |
| Brightness : | 240 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 15/14 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 12 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (2 ch, 8-bit) , 50 pins |
| Input Voltage : | 12.0V (Typ.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Panel Size : | 18.1 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0935×0.2805 mm (H×V) |
| Pixel Pitch : | 0.2805×0.2805 mm (H×V) |
| Weight : | 1.65/1.75Kgs (Typ./Max.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 359.04×287.232 mm (H×V) |
| Bezel Area : | 364.0×292.2 mm (H×V) |
| Outline Dimension : | 389×317.2 mm (H×V) |
| Outline Depth : | 30.3±1.0 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

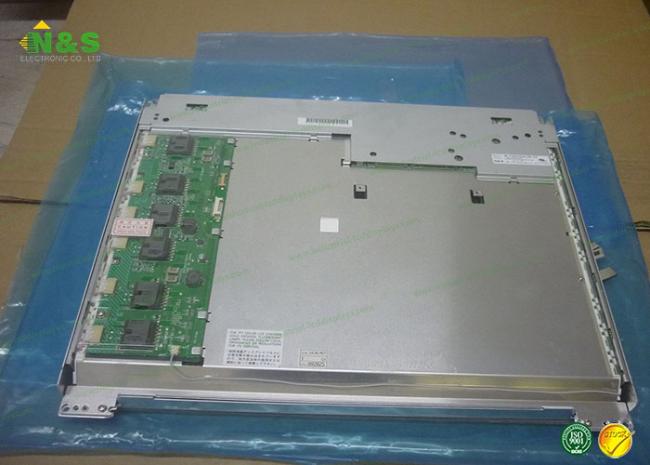

NL128102AC28-07 NEC LCD Panel Picture
