LQ088K9LA02 Sharp 8.8 inch LCD Panel LCM 1280×480 240 360:1 262K WLED RSDS
LQ088K9LA02 Sharp 8.8 inch LCD Panel LCM 1280×480 240 360:1 262K WLED RSDS
LQ088K9LA02 Detail
| Panel Brand : | SHARP |
| Panel Model : | LQ088K9LA02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.8 inch |
| Resolution : | 1280(RGB)×480 , DVGA |
| Display Mode : | Normally Black, Transflective |
| Active Area : | 209.28×78.48 mm |
| Outline : | 231.6×94.7 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 240 cd/m² (Typ.) |
| Contrast Ratio : | 360:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 5/5 (Typ.)(Tr/Td) |
| Viewing Angle : | |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | RSDS (1 Channel) , 70 pins |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Panel Size : | 8.8 inch |
| Dot Resolution : | 1280(RGB)×480 (DVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 155 PPI |
| Aspect Ratio : | 8:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0545×0.1635 mm (H×V) |
| Pixel Pitch : | 0.1635×0.1635 mm (H×V) |
| Weight : | 320g (Max.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 209.28×78.48 mm (H×V) |
| Bezel Area : | 213.0×81.0 mm (H×V) |
| Outline Dimension : | 231.6×94.7 mm (H×V) |
| Outline Depth : | 11.25 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

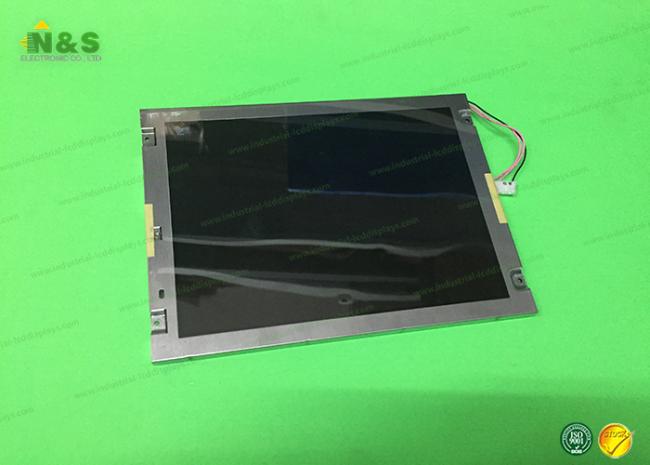

LQ088K9LA02 Picture
