Sharp LCD Panel LQ104S1LG33 10.4 inch LCM 800×600 400 600:1 262K/16.7M CCFL LVDS
Sharp LCD Panel LQ104S1LG33 10.4 inch LCM 800×600 400 600:1 262K/16.7M CCFL LVDS
LQ104S1LG33 Product Information
| Panel Brand : | SHARP |
| Panel Model : | LQ104S1LG33 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×183.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
ΠYear warranty
ΠDay shipping
‹ Return
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 520g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×162.4 mm (H×V) |
| Outline Dimension : | 243×183.8 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) |
| Landscape or Portrait : | Landscape type |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

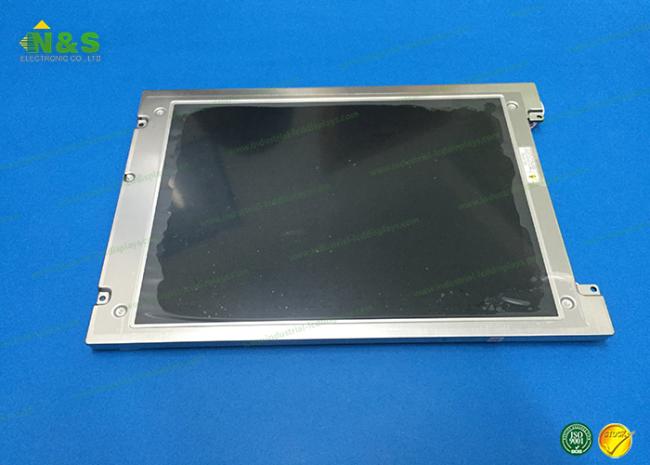

LQ104S1LG33 Picture
