7.0 inch CLAA070LC0CCW CPT LCD Panel Normally White with 152.4×91.44 mm
7.0 inch CLAA070LC0CCW CPT LCD Panel Normally White with 152.4×91.44 mm
CLAA070LC0CCW Specification
| Panel Brand : | CPT |
| Panel Model : | CLAA070LC0CCW |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×104×5.3 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 110g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 155.3×94.44 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 4.0/5.3 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ2.2) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

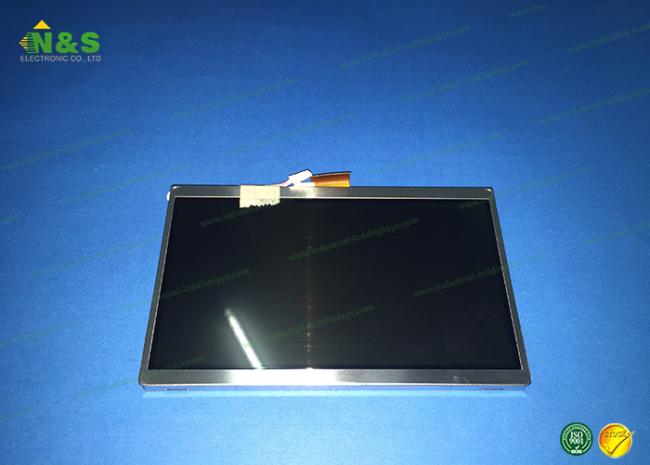

CLAA070LC0CCW Picture
