G101STN01.3 AUO LCD Panel 10.1 inch Normally White 222.72×125.28 mm
G101STN01.3 AUO LCD Panel 10.1 inch Normally White 222.72×125.28 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
G101STN01.3 Detail
| Panel Brand : | AUO |
| Panel Model : | G101STN01.3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222.72×125.28 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 45% |
| Response Time : | 7/9 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) |
| Input Voltage : | 3.3V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H139BLN01.1 | AUO | 1.39" | 400×400 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 180g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 226.34×128.1 mm (H×V) |
| Landscape or Portrait : | Landscape type |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

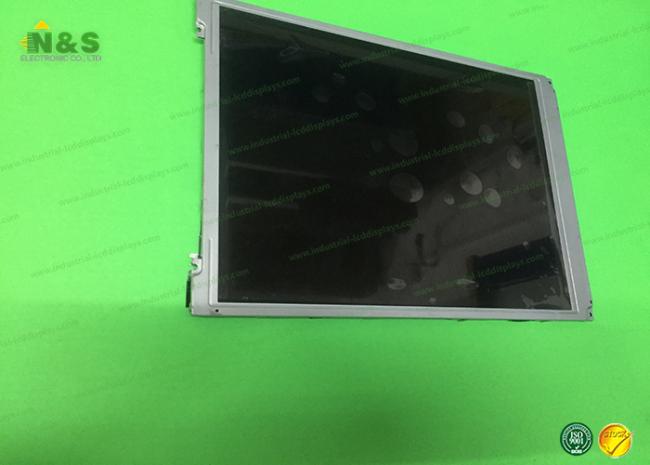

G101STN01.3 Picture
