NEC Antiglare NL160120BM27-03A Nec Large Screen Display 21.3 Inch For Medical Display Panel
NEC Antiglare NL160120BM27-03A LCD Panel 21.3 inch for Medical Display panel
NL160120BM27-03A Information
| Panel Brand : | NEC |
| Panel Model : | NL160120BM27-03A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 1600(LCR)×1200 , UXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 432×324 mm |
| Outline : | 457×350×25.5 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 1000 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 17/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 40 pins |
| Input Voltage : | 12.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F050A10-603 | Innolux | 5.0" | 540×960 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| Q30055A101 | Innolux | 3.0" | 240×400 |
| F03213-01U | Innolux | 3.2" | 240×400 |
| N156HGE-PB1 | Innolux | 15.6" | 1920×1080 |
| V650HP1-PS6 Rev.B2 | Innolux | 65" | 1920×1080 |
| F020G1-T10 | Innolux | 2.0" | 176×220 |
| PH055IA-02A | Innolux | 5.5" | 720×1280 |
| PP055IC-01D | Innolux | 5.5" | 1080×1920 |
| EE030NA-04A | Innolux | 3.0" | 960×480(dot) |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 21.3 inch |
| Dot Resolution : | 1600(LCR)×1200 (UXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.75/4.00Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 432×324 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 25±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

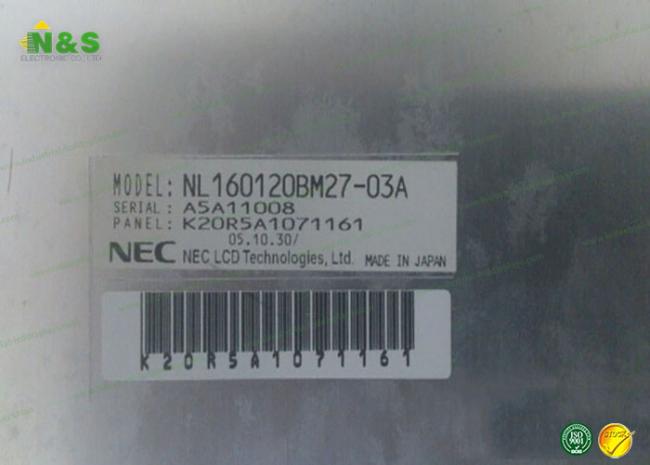

NL160120BM27-03A NEC LCD Panel Picture
