TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application
TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application
TX13D200VM5BAA Specification
| Panel Brand : | HITACHI |
| Panel Model : | TX13D200VM5BAA |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 101.76×76.32 mm |
| Outline : | 119.4×89.1×9.8 mm |
| Surface : | Antiglare |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 45 (Max.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | CMOS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 159 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.053×0.159 mm (H×V) |
| Pixel Pitch : | 0.159×0.159 mm (H×V) |
| Weight : | 110g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 101.76×76.32 mm (H×V) |
| Bezel Area : | 104.8×79.36 mm (H×V) |
| Outline Dimension : | 119.4×89.1 mm (H×V) |
| Outline Depth : | 5.8/9.8 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

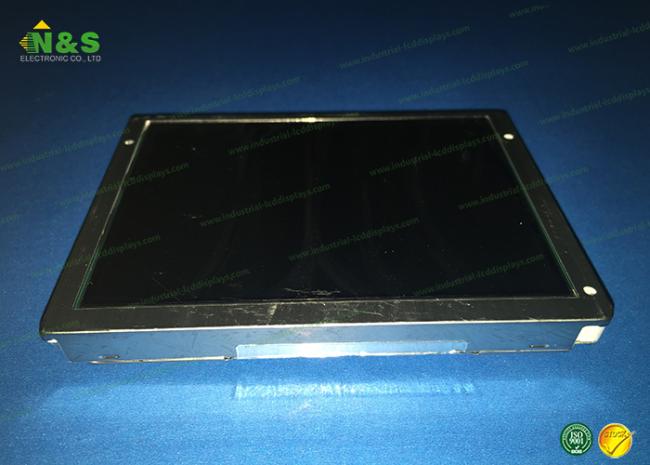

TX13D200VM5BAA Picture
