NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area
NL256204AM15-04A NEC LCD Panel 20.1 inch Normally Black 399.36×319.49 mm Active Area
NL256204AM15-04A Information
| Panel Brand : | NEC |
| Panel Model : | NL256204AM15-04A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 2560(LCR)×2048 , QSXGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 399.36×319.49 mm |
| Outline : | 423.4×343.5×44.5 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 850 cd/m² (Typ.) |
| Contrast Ratio : | 900:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 15/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 12 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (4 ch, 8-bit) , 80 pins |
| Input Voltage : | 12.0V (Typ.) |
| Panel Size : | 20.1 inch |
| Dot Resolution : | 2560(LCR)×2048 (QSXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 162 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.052×0.156 mm (H×V) |
| Pixel Pitch : | 0.156×0.156 mm (H×V) |
| Weight : | 2.30/2.60Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 399.36×319.49 mm (H×V) |
| Bezel Area : | 404.2×324.4 mm (H×V) |
| Outline Dimension : | 423.4×343.5 mm (H×V) |
| Outline Depth : | 43.5±1.0 mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : |
Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

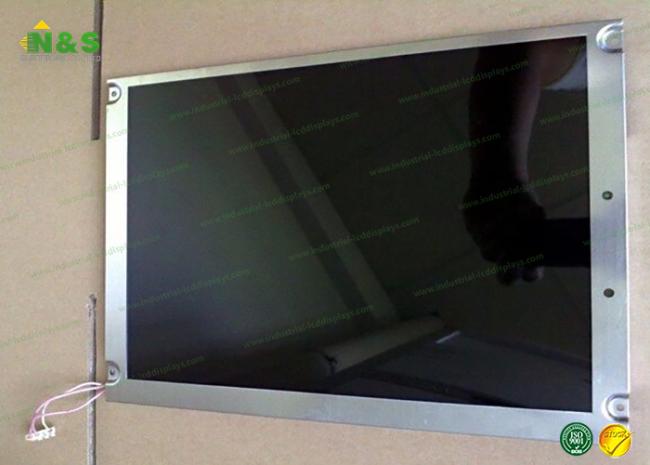

NL256204AM15-04A NEC LCD Panel Picture
