LQ024B7UD01 2.4 inch sharp replacement lcd panel LCM 160×240 28 110:1 65K WLED CPU
LQ024B7UD01 SHARP LCD Pane 2.4 inch LCM 160×240 28 110:1 65K WLED CPU
LQ024B7UD01 Detail
| Panel Size : | 2.4 inch |
|---|---|
| Dot Resolution : | 160(RGB)×240 (HQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 120 PPI |
| Aspect Ratio : | 2:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.070×0.210 mm (H×V) |
| Pixel Pitch : | 0.210×0.210 mm (H×V) |
| Weight : | 18.0g |
| Surface : | Hard coating (3H) |
| Active Area : | 33.6×50.4 mm (H×V) |
| Outline Dimension : | 41.8×66.6 mm (H×V) |
| Outline Depth : | 3.45 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
| LH320H04-SH01 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 28 cd/m² (Typ.) |
| Contrast Ratio : | 110 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 12:1 (Typ.) (Reflective) |
| Display Color : | 65K () |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| Reflectance Ratio : | 8/12% (Min./Typ.) |
| Sunlight Readable : | Y |

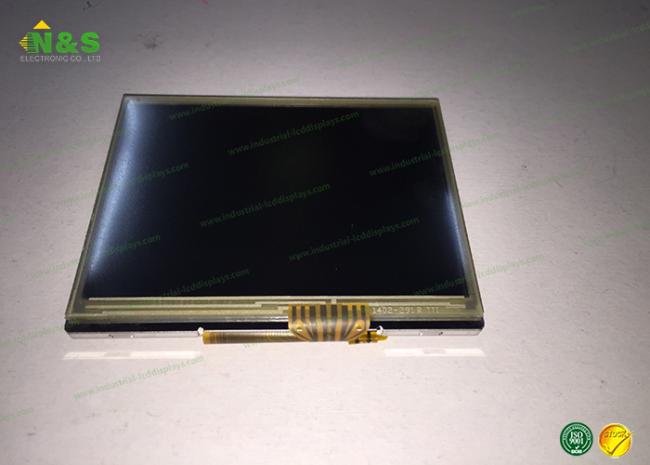

LQ024B7UD01 Picture
