LMS283GF11 2.8 inch samsung lcd panel replacement 240×320 330 290:1 262K WLED CPU

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 1-3 Working Days
Brand: Samsung
Product Description



LMS283GF11 2.8 inch samsung lcd panel replacement 240×320 330 290:1 262K WLED CPU



LMS283GF11 Specification

Panel Size : 2.8 inch
Dot Resolution : 240(RGB)×320 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 13.5g (Typ.)
Active Area : 43.2×57.6 mm (H×V)
Outline Dimension : 50×69.2 mm (H×V)
Outline Depth : 2.3 (Typ.) mm
Landscape or Portrait : Portrait type
Touch Panel : Without



Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.



Display Mode : TN, Normally White, TMR
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 290 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 60% NTSC (CIE1931)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 50/50/50/20 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : Y



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS465GS51 Samsung 4.7" 720×1280
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920

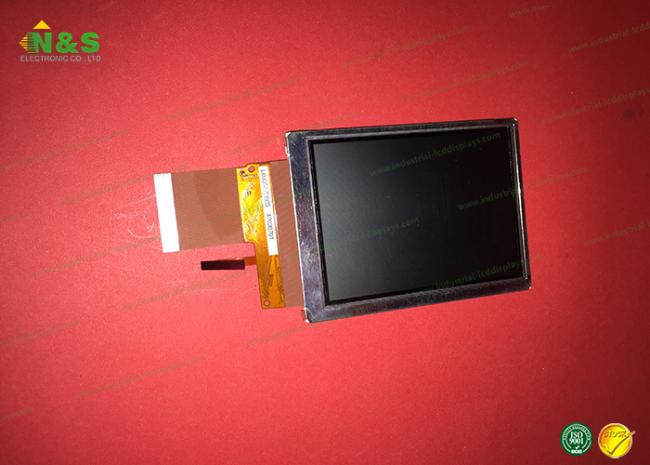

LMS283GF11 Picture
