8.0 Inch LQ080V3DG01 Sharp LCD Panel Normally White with 162.24×121.68 mm
8.0 inch LQ080V3DG01 Sharp LCD Panel Normally White with 162.24×121.68 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
SHARP LQ080V3DG01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ080V3DG01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 162.24×121.68 mm |
| Outline : | 183×141 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 380 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/55 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 32 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
SHARP LQ080V3DG01 Mechanical Features
| Panel Size : | 8.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0845×0.2535 mm (H×V) |
| Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
| Weight : | 390±20g |
| Surface : | Antiglare, Antireflection |
| Active Area : | 162.24×121.68 mm (H×V) |
| Outline Dimension : | 183×141 mm (H×V) |
| Outline Depth : | 14.0 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

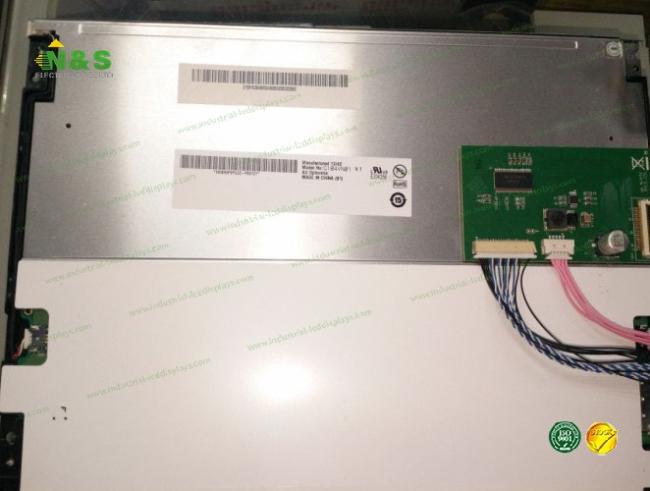

Details Picture for G104VN01 V.1
