Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline
Normally White PD050OX5 5.0 inch PVI LCD Displays with 111.5×110×7.5 mm Outline
PD050OX5 Detailed Product Description
| Panel Brand : | PVI |
| Panel Model : | PD050OX5 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×480 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 90×90 mm |
| Outline : | 111.5×110×7.5 mm |
| Surface : | Antiglare |
| Brightness : | 800 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/3.3/9.7/17.0V (Typ.)(VDD1/VCC/VDD2/VGG) |
PVI PD050OX5 Mechanical Features
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×480 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 135 PPI |
| Aspect Ratio : | 1:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch : | 0.1875×0.1875 mm (H×V) |
| Weight : | 144.0±10g |
| Surface : | Antiglare |
| Active Area : | 90×90 mm (H×V) |
| Bezel Area : | 93.2×93.2 mm (H×V) |
| Outline Dimension : | 111.5×110 mm (H×V) |
| Outline Depth : | 7.2±0.3 mm |
| Holes & Brackets : | Side mounting holes (2-M2) on right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

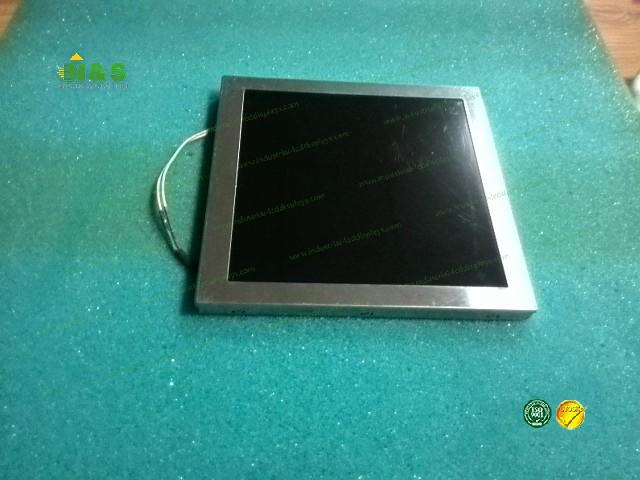

PD050OX5 Picture
