LQ035Q7DH06 SHARP 3.5 inch TN LCM 240×320 225nits WLED TTL 50pins
LQ035Q7DH06 SHARP 3.5 inch TN LCM 240×320 225nits WLED TTL 50pins
LQ035Q7DH06 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q7DH06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 65×86.2×4.2 mm |
| Surface : | Hard coating (2H) |
| Brightness : | 225 cd/m2 (Typ.) |
| Contrast Ratio : | 80:1 (Typ.)(Transmissive) 3:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 50 pins |
| Input Voltage : | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
SHARP LQ035Q7DH06 Optical Features
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 225 cd/m2 (Typ.) |
| Contrast Ratio : | 80 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 3:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 2.5/4.0% (Min./Typ.) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
- Provide excellent LCD screen replacements with competitive price.
- Safe, quick and efficient supply chain.
- Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
- Your problems will be replied within 24 hours.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

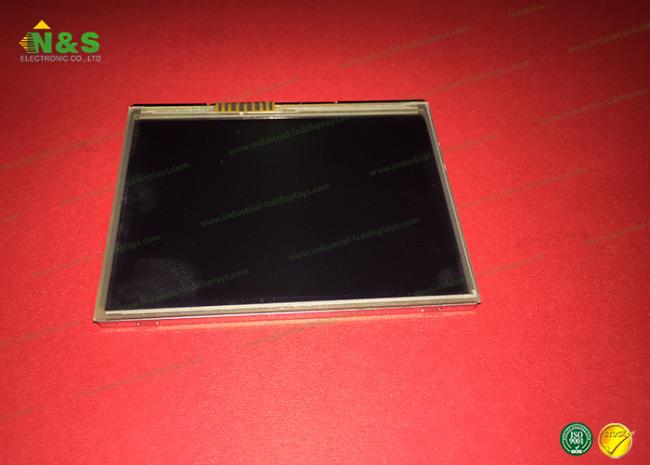

LQ035Q7DH06 Picture
