KOE LMG7524RPFC 4.7 inch 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 12pins
KOE LMG7524RPFC 4.7 inch 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 12pins
LMG7524RPFC General Features
| Panel Brand : | HITACHI |
| Panel Model : | LMG7524RPFC |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 4.7 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White (Negative), Transmissive |
| Active Area : | 95.97×71.97 mm |
| Outline : | 129.6×92.6×7.3 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (4-bit) , 12 pins |
| Input Voltage : | 5.0V (Typ.) |
HITACHI LMG7524RPFC Mechanical Features
| Panel Size : | 4.7 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.300×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 110g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 95.97×71.97 mm (H×V) |
| Bezel Area : | 104.0×79.5 mm (H×V) |
| Outline Dimension : | 129.6×92.6 mm (H×V) |
| Outline Depth : | 6.7±0.6 mm |
| Holes & Brackets : | Face mounting holes (4-R1.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LMG9980ZWCC | KOE | 12.1" | 800×600 |
| SX19V004-ZZA | KOE | 7.5" | 800×600 |
| SX19V010-ZZA | KOE | 7.5" | 640×480 |
| SX19V010 | KOE | 7.5" | 640×480 |

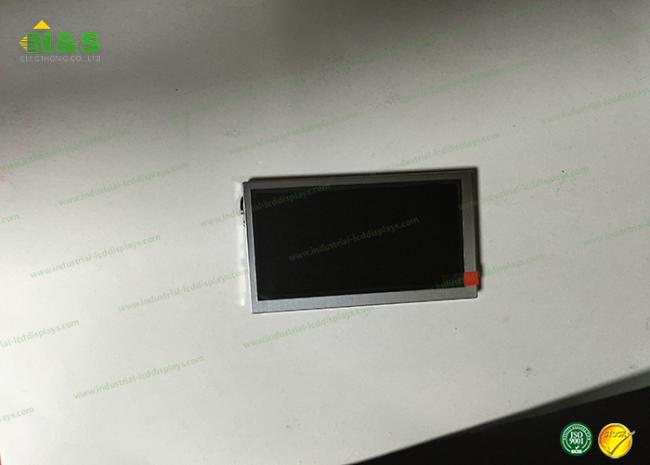

LMG7524RPFC Picture
