LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins
Samsung LMS430HF27 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins
LMS430HF27 Main Parameters
| Panel Brand : | SAMSUNG |
| Panel Model : | LMS430HF27 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | VA, Normally Black, Transflective |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Brightness : | 500 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.)(Transmissive) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 17/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 3.3V (Typ.) |
SAMSUNG LMS430HF27 Mechanical Features
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 45.0g (Typ.) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 96.44×55.23 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 2.9±0.2 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 45.0g (Typ.) |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 96.44×55.23 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 2.9±0.2 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

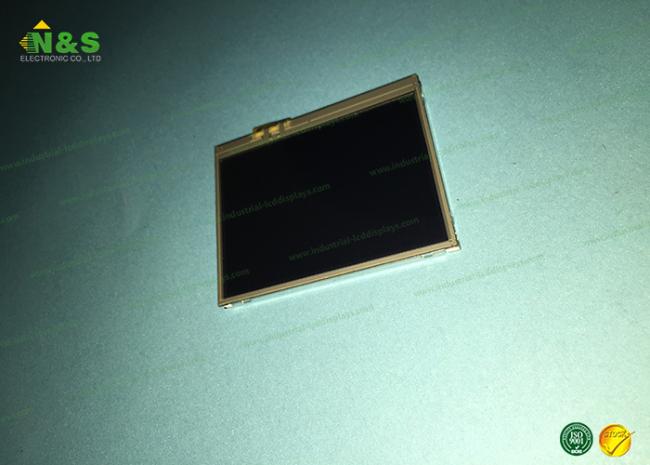

LMS430HF27 Picture
