New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz
New and original TX26D200VM5BAA KOE a-Si TFT-LCD ,10.4 inch, 800×600 FOR 60Hz
TX26D200VM5BAA Basic Information
| Panel Model | TX26D200VM5BAA |
|---|---|
| Panel Brand | KOE |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | IPS-Like |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
TX26D200VM5BAA Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 380g (Typ.) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 214.2×161.4 mm (H×V) |
| Outline Dimension | 230×180.2 mm (H×V) |
| Outline Depth | 10.6 (Max.) mm |
| Holes & Brackets | Rear mounting Pole (4-Φ3.0) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
TX26D200VM5BAA Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.290; Wy:0.340 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
TX26D200VM5BAA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SX19V001-ZZA | KOE | 7.5" | 640×480 |
| SX19V001-Z1A | KOE | 7.5" | 640×480 |
| SX19V001-Z1 | KOE | 7.5" | 640×480 |
| SP24V001-ZZA | KOE | 9.4" | 640×480 |
| SP16H001-T | KOE | 6.5" | 640×240 |
| SP10Q006-T | KOE | 3.8" | 240×320 |
| SP10Q004-T | KOE | 3.8" | 240×320 |
| SP10Q003-T | KOE | 3.8" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

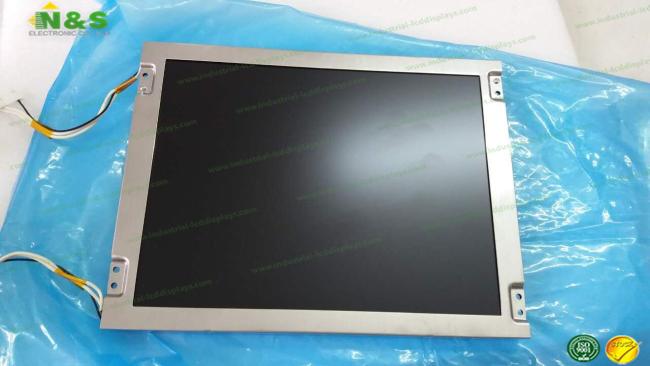

TX26D200VM5BAA pictures
