TCG121XGLPBPNN-AN40 Kyocera a-Si TFT-LCD ,12.1 inch, 1024×768 for 60Hz
TCG121XGLPBPNN-AN40 Kyocera a-Si TFT-LCD ,12.1 inch, 1024×768 for 60Hz
TCG121XGLPBPNN-AN40 Basic Information
| Panel Model | TCG121XGLPBPNN-AN40 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
TCG121XGLPBPNN-AN40 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 555g |
| Surface | Antiglare |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 260.5×203 mm (H×V) |
| Outline Depth | 9.1/10.9 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (6-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
TCG121XGLPBPNN-AN40 Optical Features
| Display Mode | AWV, Normally Black, Transmissive |
|---|---|
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 750 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 51% NTSC (CIE1931) |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.320; Wy:0.345 |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
TCG121XGLPBPNN-AN40 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
Below are our other LCD panels stock for your easy reference:
| DMF-50316NF-FW-APN | Kyocera | 5.2" | 240×64 | 10 |
| KHB084SV1AA-G83 | Kyocera | 8.4" | 800×600 | 120 |
| KCB104VG2BA-A41 | Kyocera | 10.4" | 640×480 | 10 |
| KCG057QV1DB-G870 | Kyocera | 5.7" | 320×240 | 10 |
| KG057QVLFF-G00 | Kyocera | 5.7" | 320×240 | 10 |
| KCT10276BSTT-X4 | Kyocera | 15.0" | 1024×768 | 10 |
| KCS6448JSTT-X4 | Kyocera | 10.4" | 640×480 | 10 |
| KCS072VG1MC-A20 | Kyocera | 7.2" | 640×480 | 10 |
We also have other industrial LCD panels, pls contact to us for the further information

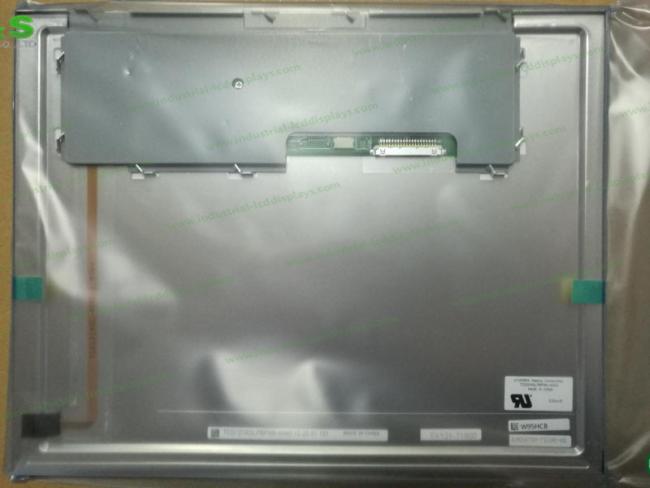

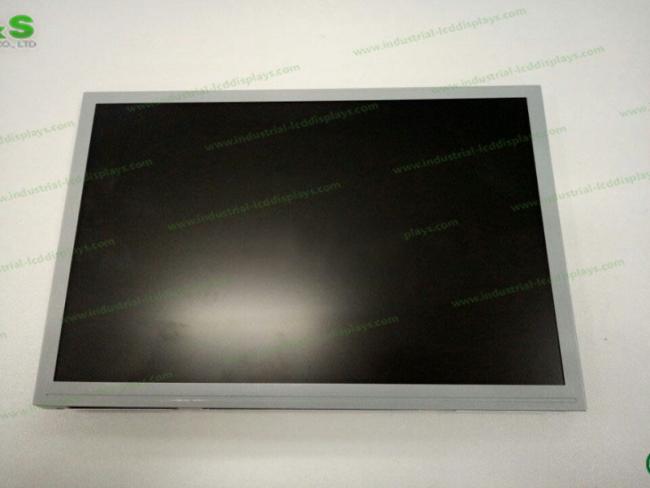

TCG121XGLPBPNN-AN40 pictures
