R190EFE-L51 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Industrial Application
R190EFE-L51 INNOLUX a-Si TFT-LCD ,19.0 inch, 1280×1024 for Industrial Application
R190EFE-L51 Basic Information
| Panel Model | R190EFE-L51 |
|---|---|
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Clear base |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
R190EFE-L51 Mechanical Features
| Dot Resolution | 1280(LCR)×1024 (SXGA) |
|---|---|
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.98±0.08Kgs |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 376.32×301.06 mm (H×V) |
| Bezel Area | 380.3×305.0 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 20.1/26.1 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4 pcs) on left right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
R190EFE-L51 Optical Features
| Display Mode | DD-IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 1400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 15/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.309 |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
R190EFE-L51 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 27.74W |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F060A09-6T2 | Innolux | 6.0" | 720×1280 |
| M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
| ME270NA-01A | Innolux | 27.0" | 1920×1080 |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information

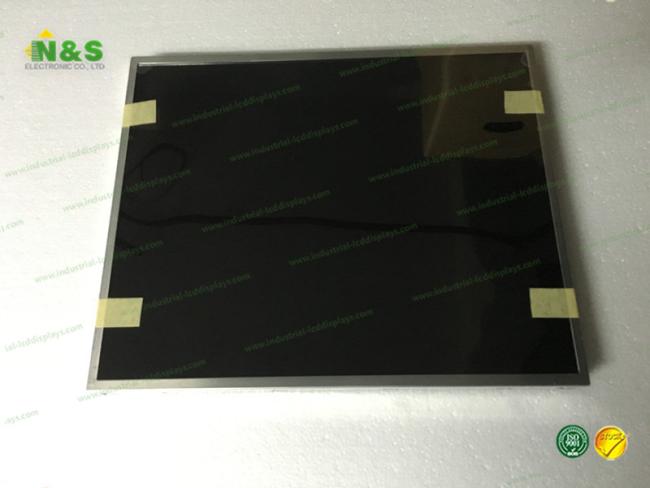

R190EFE-L51 pictures
