TX20D200VM5BAA KOE a-Si TFT-LCD ,8.0 inch, 800×480 for Medical Imaging
TX20D200VM5BAA KOE a-Si TFT-LCD ,8.0 inch, 800×480 for Medical Imaging
TX20D200VM5BAA Basic Information
| Panel Model | TX20D200VM5BAA |
|---|---|
| Panel Brand | KOE |
| Descrition | a-Si TFT-LCD ,8.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | IPS-Like, Lite+ |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
TX20D200VM5BAA Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 116 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2175 mm (H×V) |
| Pixel Pitch | 0.2175×0.2175 mm (H×V) |
| Weight | 220g |
| Active Area | 174×104.4 mm (H×V) |
| Bezel Area | 177.0×107.4 mm (H×V) |
| Outline Dimension | 189×122 mm (H×V) |
| Outline Depth | 10.2 (Typ.) mm |
| Holes & Brackets | Rear mounting Pole (4- Φ3.0) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
TX20D200VM5BAA Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.340 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
TX20D200VM5BAA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LMG7400PLFC | KOE | 5.1" | 240×128 |
| LMG6915RPFF | KOE | 5.7" | 320×240 |
| LMG6912RPFC-00T | KOE | 5.7" | 320×240 |
| LMG6912RPFC | KOE | 5.7" | 320×240 |
| LMG6911RPBC-00T | KOE | 5.7" | 320×240 |
| LMG6911RPBC | KOE | 5.7" | 320×240 |
| LMG6910RPGR | KOE | 5.7" | 320×240 |
| SP14Q001-X | KOE | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

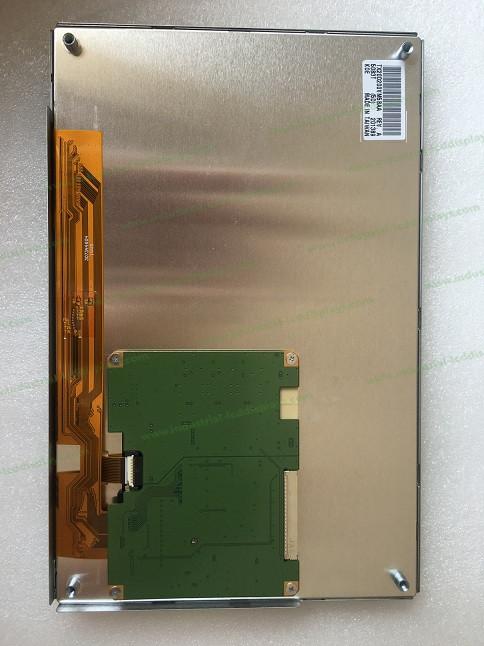

TX20D200VM5BAA pictures
