TX13D06VM2BAA HITACHI a-Si TFT-LCD ,5.0 inch, 800×480 for Medical Imaging
TX13D06VM2BAA HITACHI a-Si TFT-LCD ,5.0 inch, 800×480 for Medical Imaging
TX13D06VM2BAA Basic Information
| Panel Model | TX13D06VM2BAA |
|---|---|
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,5.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | CMOS|LED|WTR|Vseries|UHB |

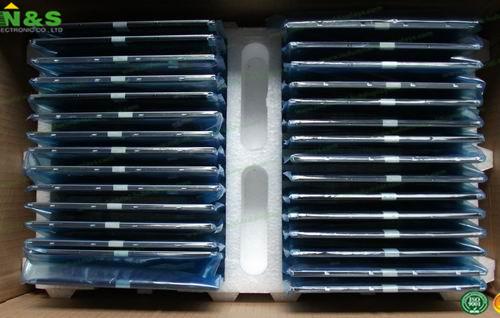

Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
TX13D06VM2BAA Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 188 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.045×0.135 mm (H×V) |
| Pixel Pitch | 0.135×0.135 mm (H×V) |
| Weight | 75g (Typ.) |
| Surface | Antiglare |
| Active Area | 108×64.8 mm (H×V) |
| Bezel Area | 110.0×66.8 mm (H×V) |
| Outline Dimension | 120×80.7 mm (H×V) |
| Outline Depth | 5.0/8.5 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting holes (4-Ф2.0) on poles |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
TX13D06VM2BAA Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 500 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.290; Wy:0.310 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
TX13D06VM2BAA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
| Total Power Consumption | 2.7W (Typ.) |
