NEC A-Si TFT Medical LCD Displays 1600×1200 Resolution NL160120AC27-32 Durable
NL160120AC27-32 NEC a-Si TFT-LCD ,21.3 inch, 1600×1200 for 60Hz
NL160120AC27-32 Basic Information
| Panel Model | NL160120AC27-32 |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,21.3 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | NL160120AC27-40 |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
NL160120AC27-32 Mechanical Features
| Dot Resolution | 1600(RGB)×1200 (UXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 94 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.090×0.270 mm (H×V) |
| Pixel Pitch | 0.270×0.270 mm (H×V) |
| Weight | 2.70/2.98Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 432×324 mm (H×V) |
| Bezel Area | 438.2×330.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 21.5/23.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
NL160120AC27-32 Optical Features
| Display Mode | UA-SFT, Normally Black, Transmissive |
|---|---|
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.299; Wy:0.315 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
NL160120AC27-32 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 57W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL8060BC26-28D | NLT | 10.4" | 800×600 |
| NL280210AM15-04A | NLT | 21.3" | 2800×2100 |
| NL2432HC22-50K | NLT | 3.5" | 240×320 |
| NL160120BC27-19E | NLT | 21.3" | 1600×1200 |
| NL204153BM21-05 | NLT | 21.3" | 2048×1536 |
| NL204153BM21-04A | NLT | 21.3" | 2048×1536 |
| NL204153BM21-04 | NLT | 21.3" | 2048×1536 |
| NL204153BM21-02 | NLT | 21.3" | 2048×1536 |
We also have other industrial LCD panels, pls contact to us for the further information

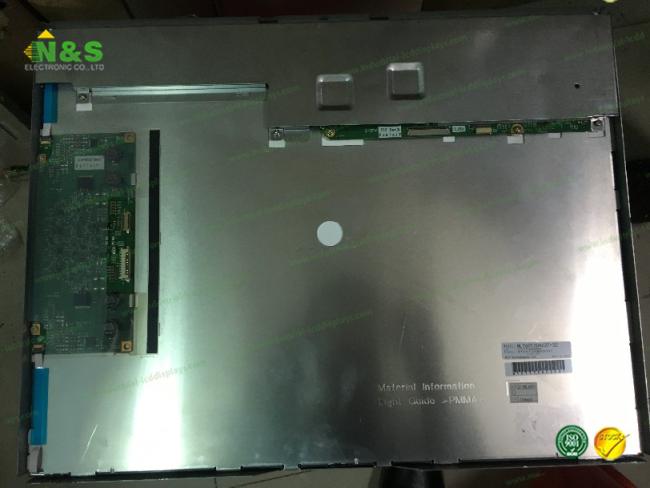

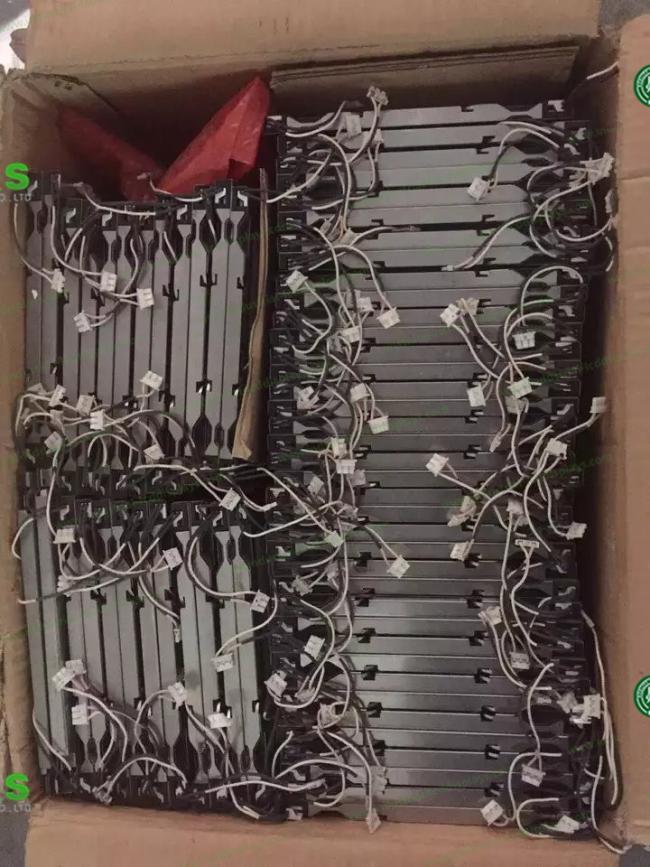

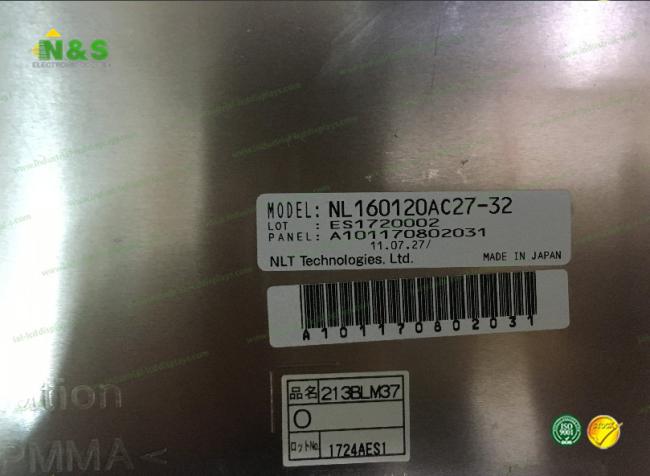

NL160120AC27-32 pictures
