21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density
NL160120AC27-32B NEC a-Si TFT-LCD ,21.3 inch, 1600×1200 for 60Hz
NL160120AC27-32B Basic Information
| Panel Model | NL160120AC27-32B |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,21.3 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
NL160120AC27-32B Mechanical Features
| Dot Resolution | 1600(RGB)×1200 (UXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 94 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.090×0.270 mm (H×V) |
| Pixel Pitch | 0.270×0.270 mm (H×V) |
| Weight | 2.70/2.98Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 432×324 mm (H×V) |
| Bezel Area | 438.2×330.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 21.5/23.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
NL160120AC27-32B Optical Features
| Display Mode | UA-SFT, Normally Black, Transmissive |
|---|---|
| Brightness | 760 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.299; Wy:0.315 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
NL160120AC27-32B Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 57W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448BC33-29 | NLT | 10.4" | 640×480 |
| NL10276BC20-11 | NLT | 10.4" | 1024×768 |
| NL10276BC28-01 | NLT | 14.1" | 1024×768 |
| NL9654HL06-01J | NLT | 2.7" | 960×540 |
| NL8060BC31-47C | NLT | 12.1" | 800×600 |
| NL8060BC31-18A | NLT | 12.1" | 800×600 |
| NL8060BC31-17-CIS | NLT | 12.1" | 800×600 |
| NL8060BC26-24 | NLT | 10.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

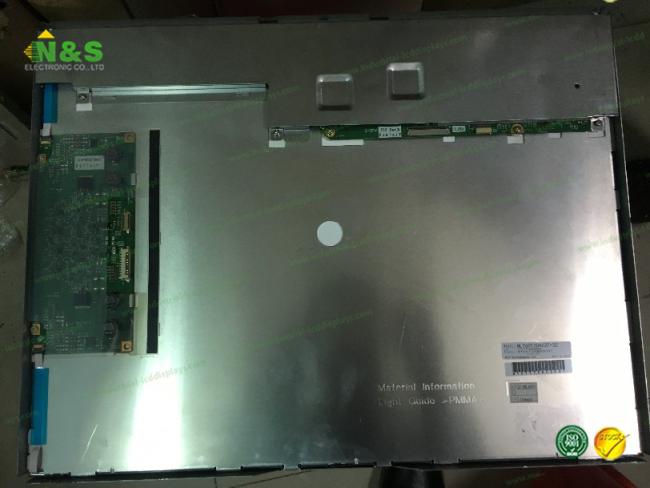

NL160120AC27-32B pictures
