NL8048AC19-13 Mitsubishi TFT LCD Module 152.4×91.44 mm Active Area 60Hz Frequency
Normally White NL8048AC19-13 Mitsubishi TFT LCD Module 152.4×91.44 mm Active Area 60Hz Frequency
NL8048AC19-13 Basic Information
|
Panel Model |
NL8048AC19-13 |
|---|---|
|
Panel Brand |
NLT |
|
Descrition |
a-Si TFT-LCD ,7.0 inch, 800×480 |
|
Panel Type |
a-Si TFT-LCD |
|
Operating Temperature |
-30 ~ 80 °C |
|
Storage Temperature |
-30 ~ 80 °C |
|
Vibration Resistance |
2.0G (19.6 m/s²) |
NL8048AC19-13 Mechanical Features
|
Dot Resolution |
800(RGB)×480 (WVGA) |
|---|---|
|
Pixel Configuration |
RGB Vertical Stripe |
|
Pixel Density |
133 PPI |
|
Aspect Ratio |
15:9 (H:V) |
|
Form Factor |
Flat Rectangle Display |
|
Dot Pitch |
0.0635×0.1905 mm (H×V) |
|
Pixel Pitch |
0.1905×0.1905 mm (H×V) |
|
Weight |
185/200g (Typ./Max.) |
|
Surface |
Clear, Hard coating (3H) |
|
Active Area |
152.4×91.44 mm (H×V) |
|
Bezel Area |
154.4×93.5 mm (H×V) |
|
Outline Dimension |
170×111 mm (H×V) |
|
Outline Depth |
8.5±0.5 mm |
|
Holes & Brackets |
Side mounting holes (4-M2) on left, right bezel |
|
Landscape or Portrait |
Landscape type |
|
Touch Panel |
Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
-
AUO LCD Screen
-
Samsung LCD Display
-
LG LCD Screen replacements
-
Sharp LCD panels &Chimei LCD Parts.
-
Innolux LCD Modules & BOE LCD Screen.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
|
Panel Model |
Brand |
Size |
Resolution |
|
AA150XN21 |
Mitsubishi |
15.0" |
1024×768 |
|
AA121TD03 |
Mitsubishi |
12.1" |
1280×800 |
|
AA150XT11-DE-01 |
Mitsubishi |
15.0" |
1024×768 |
|
AA121XN11-DE-01 |
Mitsubishi |
12.1" |
1024×768 |
|
AA104XF12-DE-02 |
Mitsubishi |
10.4" |
1024×768 |
|
AA084XE11-DA-02 |
Mitsubishi |
8.4" |
1024×768 |
|
AA084XE11-DA-01 |
Mitsubishi |
8.4" |
1024×768 |
|
AA084SD11-CA-01 |
Mitsubishi |
8.4" |
800×600 |
|
AA065VE11-DA-01 |
Mitsubishi |
6.5" |
640×480 |
|
AA084VC08 |
Mitsubishi |
8.4" |
640×480 |
|
AT070MJ01 |
Mitsubishi |
7.0" |
800×480 |

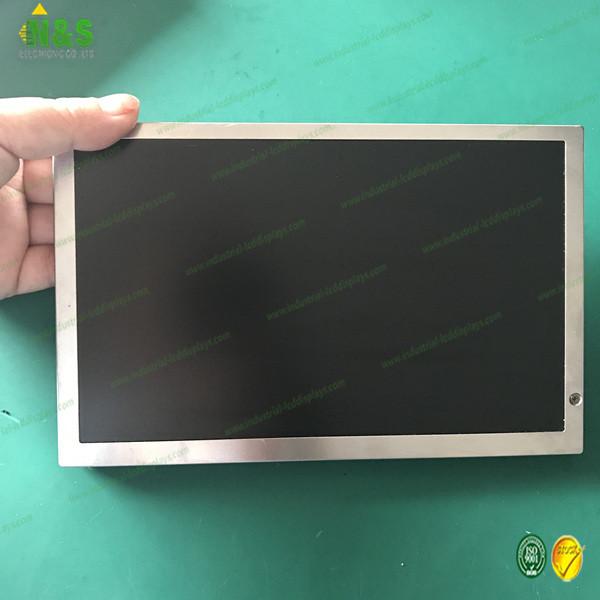

NL8048AC19-13 Mitsubishi LCD Panel picture
