800*600 8.4 inch NL8060BC21-11C LCD Display Panel 60Hz Frequency 170.4×127.8 mm Active Area
800*600 8.4 inch NL8060BC21-11C LCD Display Panel 60Hz Frequency 170.4×127.8 mm Active Area
NL8060BC21-11C Information
| Panel Model | NL8060BC21-11C |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.4×127.8 mm |
| Outline | 200×152×8.7 mm |
| Surface | Clear, Hard coating (2H), Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 strings WLED Without Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Pls contact to us for more stock information: salespm@nselectronic.com.hk

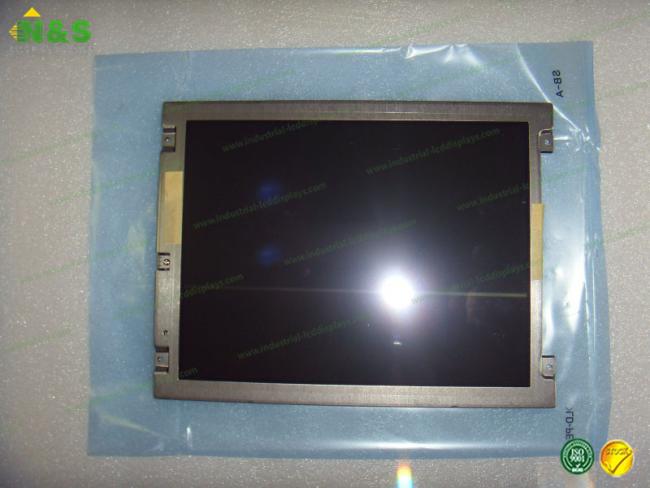

NL8060BC21-11C Picture
