NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch
NL6448BC26-08D 8.4 inch 640×480 LCD Pixel Density 95 PPI 0.267×0.267 mm (H×V) Pixel Pitch
| Panel Model | NL6448BC26-08D |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | UA-SFT, Normally Black, Transmissive |
| Active Area | 170.88×128.16 mm |
| Outline | 200×152 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 72% |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
LQ043T3DX04 General Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.089×0.267 mm (H×V) |
| Pixel Pitch | 0.267×0.267 mm (H×V) |
| Weight | 330/350g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 170.88×128.16 mm (H×V) |
| Bezel Area | 174.0×131.4 mm (H×V) |
| Outline Dimension | 200×152 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Ф2.8) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

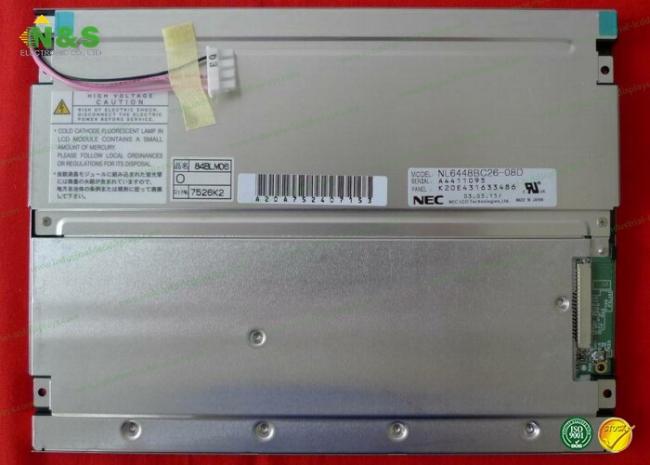

Details Picture for NEC NL6448BC26-08D
