Flat NL3224AC35-01 5.5 inch lcd screen Active Area 111.36×83.52 mm Normally White
Flat NL3224AC35-01 5.5 inch lcd screen Active Area 111.36×83.52 mm Normally White
NL3224AC35-01 Information
| Panel Model | NL3224AC35-01 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,5.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 111.36×83.52 mm |
| Outline | 134×110 mm |
| Surface | Antiglare |
| Contrast Ratio | 85:1 (Typ.) |
| Display Colors | Full color , CIE1931 50% |
| Response Time | 16/44 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/30/15 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcs CCFL Embedded (Inverter) |
| Signal Interface | Analog RGB , 30 pins |
| Input Voltage | 9.5V (Typ.) |
NL3224AC35-01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 85 : 1 (Typ.) (Transmissive) |
| Display Color | Full color () |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 16/44 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/30/15 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

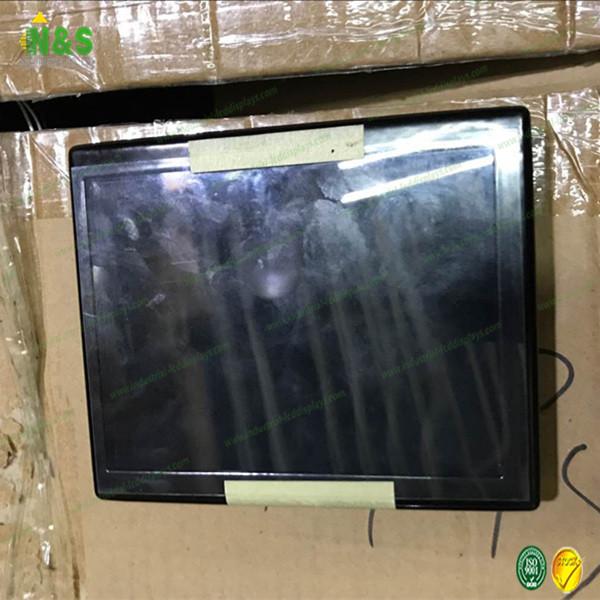

NL3224AC35-01 Picture
