19.0 inch AUO G190EAN01.0 1280×1024 Resolution Outline396×324×17.5 mm
19.0 inch AUO G190EAN01.0 1280×1024 Resolution new and original Outline396×324×17.5 mm in stock
AUO G190EAN01.0 General Features
| Panel Model | G190EAN01.0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 376.32×301.056 mm |
| Outline | 396×324×17.5 mm |
| Surface | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S6P WLED Embedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage | 5.0V (Typ.) |
AUO G190EAN01.0 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.55Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 376.32×301.056 mm (H×V) |
| Bezel Area | 380.32×305.06 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 9.0/17.5 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

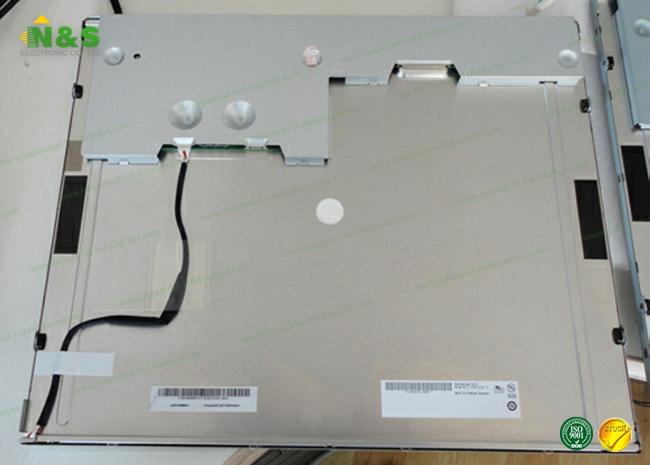

Details Pictures for LG LCD Panel G190EAN01.0
