High Brightness AUO LCD Panel 28.6 Inch 1920 × 540 60Hz For Industrial
G286HAN01.0 AUO 28.6" LCM 1920×540 60Hz for Industrial Application&Outdoor High Brightness&Stretched Display
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
AUO G286HAN01.0 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×540 | Dot Pitch | 0.12125×0.36375 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.36375×0.36375 mm (H×V) | |
| Mechanical Size : | Display Area | 698.4×196.425 mm (H×V) | Bezel Area | 702.4×200.43 mm (H×V) |
| Outline Dim. | 731.46×229.49 mm (H×V) | Outline Depth | 15.14/21.34 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle Display | Orientation | Landscape type |
| Aspect Ratio | >3:1 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (18-M3) on left, right, up, down bezel | |||
| Other Features : | Weight | 2.70Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
Pls contact to us for more stock information

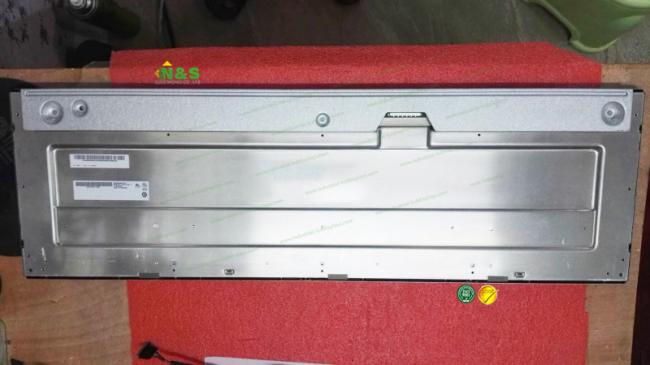

G286HAN01.0 pictures
