G190EG02V1 AUO a-Si TFT-LCD ,19.0 inch , 1280×1024 for 60Hz
G190EG02 V1 AUO a-Si TFT-LCD ,19.0 inch , 1280×1024 for 60Hz
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
G190EG02 V1 Basic Information
| Panel Model | G190EG02 V1 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | G190EG02 V.1 |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
G190EG02 V1 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.75Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 376.32×301.06 mm (H×V) |
| Bezel Area | 380.32×305.06 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 18.9 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
G190EG02 V1 Optical Features
| Display Mode | MVA, Normally Black, Transmissive |
|---|---|
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 70% NTSC (CIE1931) |
| Response Time | 15/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H139BLN01.1 | AUO | 1.39" | 400×400 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
| H497TLB01 | AUO | 5.0" | 720×1280 |
| H497TLB01.0 | AUO | 5.0" | 720×1280 |
| M350DVR01.1 CELL | AUO | 35.0" | 2560×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

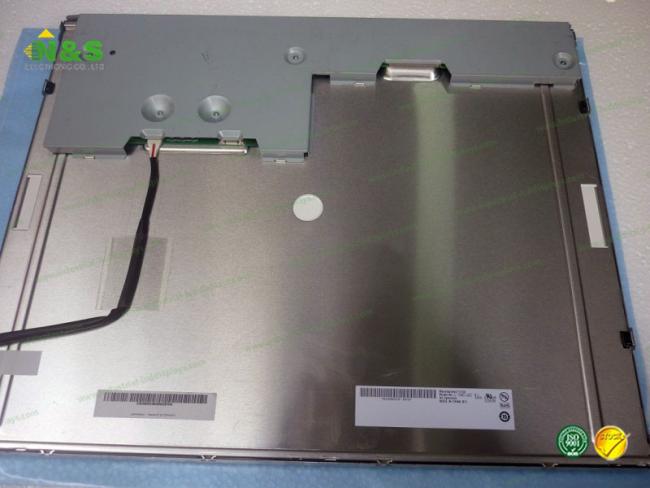

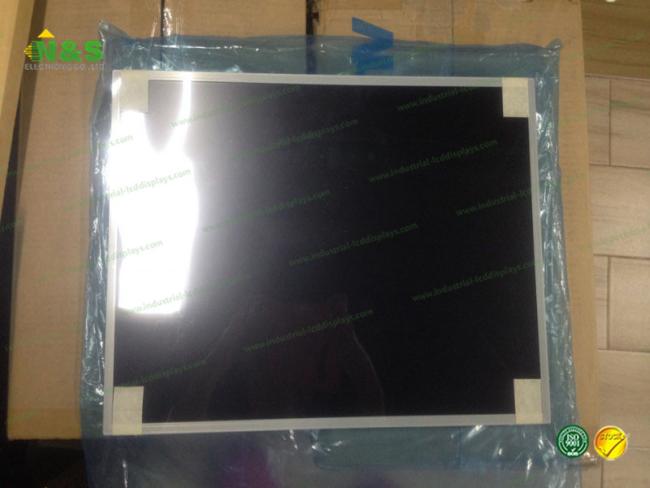

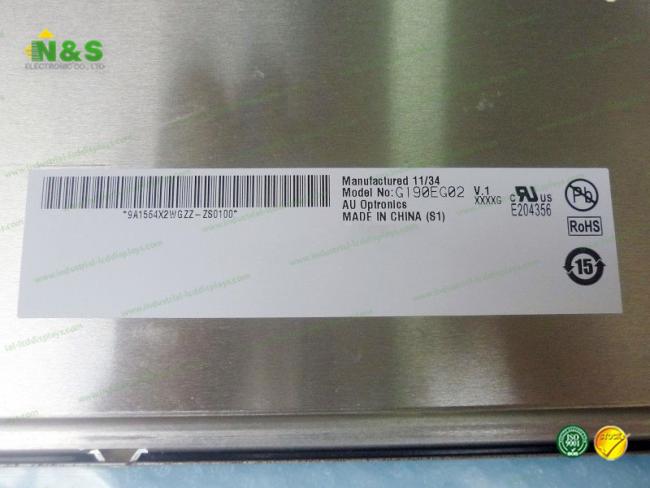

G190EG02V1 Pictures
