Normally White NEC LCD Panel NL10276BC30-04D 15 Inch Resolution 1024×768 For Desktop Monitor
Normally White NEC NL10276BC30-04D 15 inch Resolution 1024×768 for Desktop Monitor
NL10276BC30-04D Information
| Panel Model | NL10276BC30-04D |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 350×265×21.5 mm |
| Surface | Antireflection |
| Contrast Ratio | 200:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 40% |
| Response Time | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage | 5.0V (Typ.) |
NL10276BC30-04D Basic Information
| Panel Model | NL10276BC30-04D |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | With Retardation Film |
NL10276BC30-04D Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 200 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 15/40 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
NL10276BC30-04D Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 17W (Typ.) |

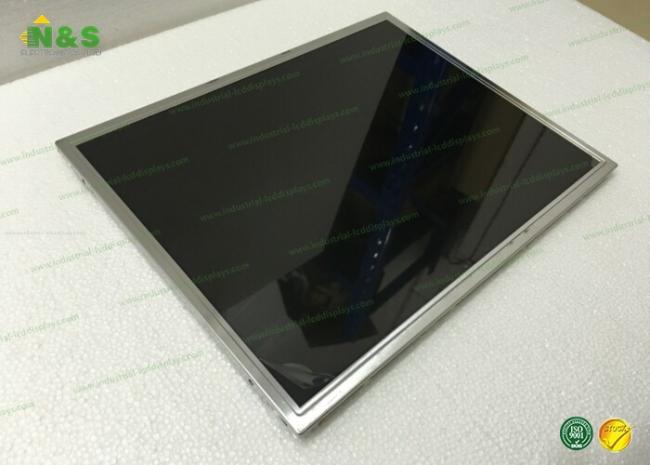

NL10276BC30-04D Picture
