7.7 Inch 640×480 Medical LCD Displays KCS077VG2EA-A43 Kyocera CSTN-LCD
KCS077VG2EA-A43 Kyocera CSTN-LCD ,7.7 inch, 640×480 for Medical Imaging
KCS077VG2EA-A43 Basic Information
| Panel Model | KCS077VG2EA-A43 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,7.7 inch, 640×480 |
| Panel Type | CSTN-LCD |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
KCS077VG2EA-A43 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 103 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.082×0.246 mm (H×V) |
| Pixel Pitch | 0.246×0.246 mm (H×V) |
| Weight | 330g |
| Active Area | 157.42×118.06 mm (H×V) |
| Bezel Area | 160.42×121.06 mm (H×V) |
| Outline Dimension | 199×147 mm (H×V) |
| Outline Depth | 10.0±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
1Visual InspectionMake sure No damage, No Scratches, No dusty, No light leakage.
2Function InspectionMake sure all functions are 100% tested ok
KCS077VG2EA-A43 Optical Features
| Display Mode | STN, Normally Black, Transmissive |
|---|---|
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 25 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 300 (Typ.)(Tr+Td) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
KCS077VG2EA-A43 Electronics Feature
| Vertical Frequency | 75Hz |
|---|---|
| Total Power Consumption | 4.316W |
| Driving Method | Duty: 1/240 |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KCS6448HSTT-X12 | Kyocera | 10.4" | 640×480 |
| DMF5005N-EB | Kyocera | 5.2" | 240×64 |
| DMF5005NY-LY | Kyocera | 5.2" | 240×64 |
| DMF5005NY-EB | Kyocera | 5.2" | 240×64 |
| DMF5005NF-LY | Kyocera | 5.2" | 240×64 |
| DMF5005NF-SEW-BBE-CQ | Kyocera | 5.2" | 240×64 |
| DMF5005NF-SEW | Kyocera | 5.2" | 240×64 |
| DMF5005NYJ-LY-BXE-CU | Kyocera | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information

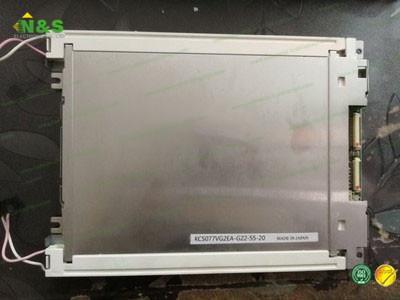

KCS077VG2EA-A43 pictures
