8.4 Inch Medical LCD Displays T-51638D084J-FW-A-AB OPTREX Antiglare Surface
New and original T-51638D084J-FW-A-AB OPTREX a-Si TFT-LCD ,8.4 inch, 640×480 for Medical Imaging
T-51638D084J-FW-A-AB Basic Information
| Panel Model | T-51638D084J-FW-A-AB |
|---|---|
| Panel Brand | OPTREX |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | AA084VC05 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
T-51638D084J-FW-A-AB Mechanical Features
Dot Resolution 640(RGB)×480 (VGA) Pixel Configuration RGB Vertical Stripe Pixel Density 95 PPI Aspect Ratio 4:3 (H:V) Form Factor Flat Rectangle Display Dot Pitch 0.089×0.267 mm (H×V) Pixel Pitch 0.267×0.267 mm (H×V) Weight 360g (Typ.) Surface Antiglare, Hard coating (3H) Active Area 170.88×128.16 mm (H×V) Bezel Area 174.9×132.2 mm (H×V) Outline Dimension 199.5×149 mm (H×V) Outline Depth 11.5±0.5 mm Holes & Brackets Face mounting holes (4-Φ3.4) on left, right bezel Landscape or Portrait Landscape type Touch Panel Without Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
T-51638D084J-FW-A-AB Optical Features
Display Mode TN, Normally White, Transmissive Brightness 480 cd/m² (Typ.) Contrast Ratio 500 : 1 (Typ.) (Transmissive) Display Color 262K (6-bit) Response Time 6/19 (Typ.)(Tr/Td) Viewing Angle 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) Viewing Direction 6 o'clock White color Chromaticity Wx:0.313; Wy:0.327 White Variation 1.30 (Max.)(5 points) Sunlight Readable N
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
T-51638D084J-FW-A-AB Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| DMF5005NYJ-LY | Kyocera | 5.2" | 240×64 |
| DMF5005N | Kyocera | 5.2" | 240×64 |
| DMF5005NY-LY-CNE-DCN | Kyocera | 5.2" | 240×64 |
| DMF5005NY-LY-AKE | Kyocera | 5.2" | 240×64 |
| DMF5005N-SEW-ABE-CP | Kyocera | 5.2" | 240×64 |
| DMF5005N-EW | Kyocera | 5.2" | 240×64 |
| DMF5005N-COE-DDN | Kyocera | 5.2" | 240×64 |
| DMF5005N-AAE-CO | Kyocera | 5.2" | 240×64 |
We also have other industrial LCD panels, pls contact to us for the further information

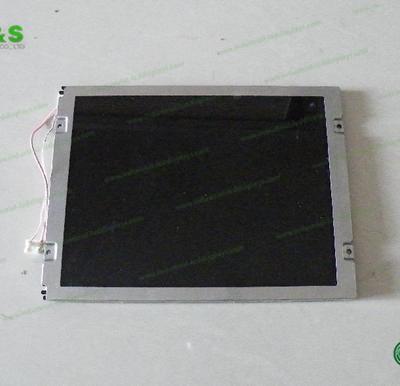

T-51638D084J-FW-A-AB pictures
