INNOLUX TFT LCD Screen AT025TN22 2.5 Inch 49.92×37.44mm Normally White High Brightness
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
1-3 Working Days
Brand:
Innolux LCD Panel
Product Description
New and original INNOLUX AT025TN22 2.5 inch 49.92×37.44 mm Normally White
AT025TN22 Information
| Panel Model | AT025TN22 |
|---|---|
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,2.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 49.92×37.44 mm |
| Outline | 56.4×49.12 mm |
| Surface | |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | |
| Signal Interface | CPU , 45 pins |
AT025TN22 Basic Information
| Panel Model | AT025TN22 |
|---|---|
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,2.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
AT025TN22 Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 162 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.052×0.156 mm (H×V) |
| Pixel Pitch | 0.156×0.156 mm (H×V) |
| Weight | 16.84g (Typ.) |
| Active Area | 49.92×37.44 mm (H×V) |
Our Advantages
- We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
- 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
- Welcome small, medium & big quantity orders.
- 100% QC Inspection before Shipment.
- After-sales-service With 12 Months Warranty for our LCD panels.
Primary Competitive Advantages:
- Brand-name Parts
- Country of Origin
- Guarantee/Warranty
- International Approvals
- Packaging
- Price
- Product Features
- Product Performance
- Quality Approvals
- Reputation
- Service
- Small Orders Accepted

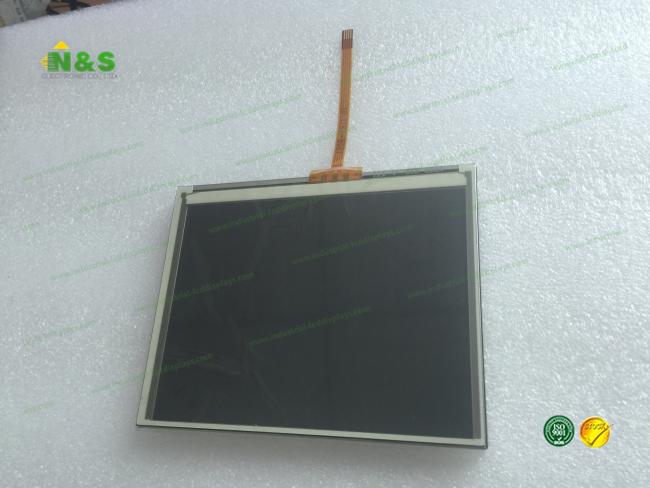

AT025TN22 Picture
