5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display
New and original TX14D25VM1BAA KOE a-Si TFT-LCD ,5.7 inch, 320×240 for Industrial Application
TX14D25VM1BAA Basic Information
| Panel Model | TX14D25VM1BAA |
|---|---|
| Panel Brand | KOE |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
TX14D25VM1BAA Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 142g (Typ.) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dimension | 131×102.2 mm (H×V) |
| Outline Depth | 9.6/11.4 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting Pole (4-Φ2.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
TX14D25VM1BAA Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 45 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/75/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
TX14D25VM1BAA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SX19V010 | KOE | 7.5" | 640×480 |
| SX31S009-A01 | KOE | 12.1" | 800×600 |
| SX31S009 | KOE | 12.1" | 800×600 |
| SX31S008 | KOE | 12.1" | 800×600 |
| SX31S007 | KOE | 12.1" | 800×600 |
| SX31S004 | KOE | 12.1" | 800×600 |
| SX31S003 | KOE | 12.1" | 800×600 |
| SX31S002 | KOE | 12.1" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

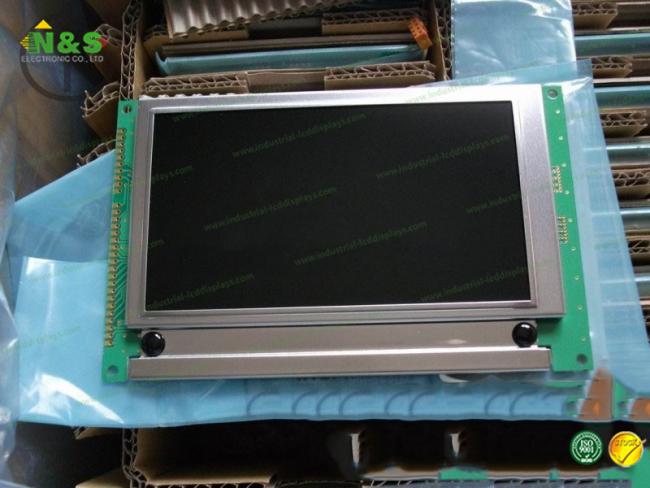

TX14D25VM1BAA pictures
